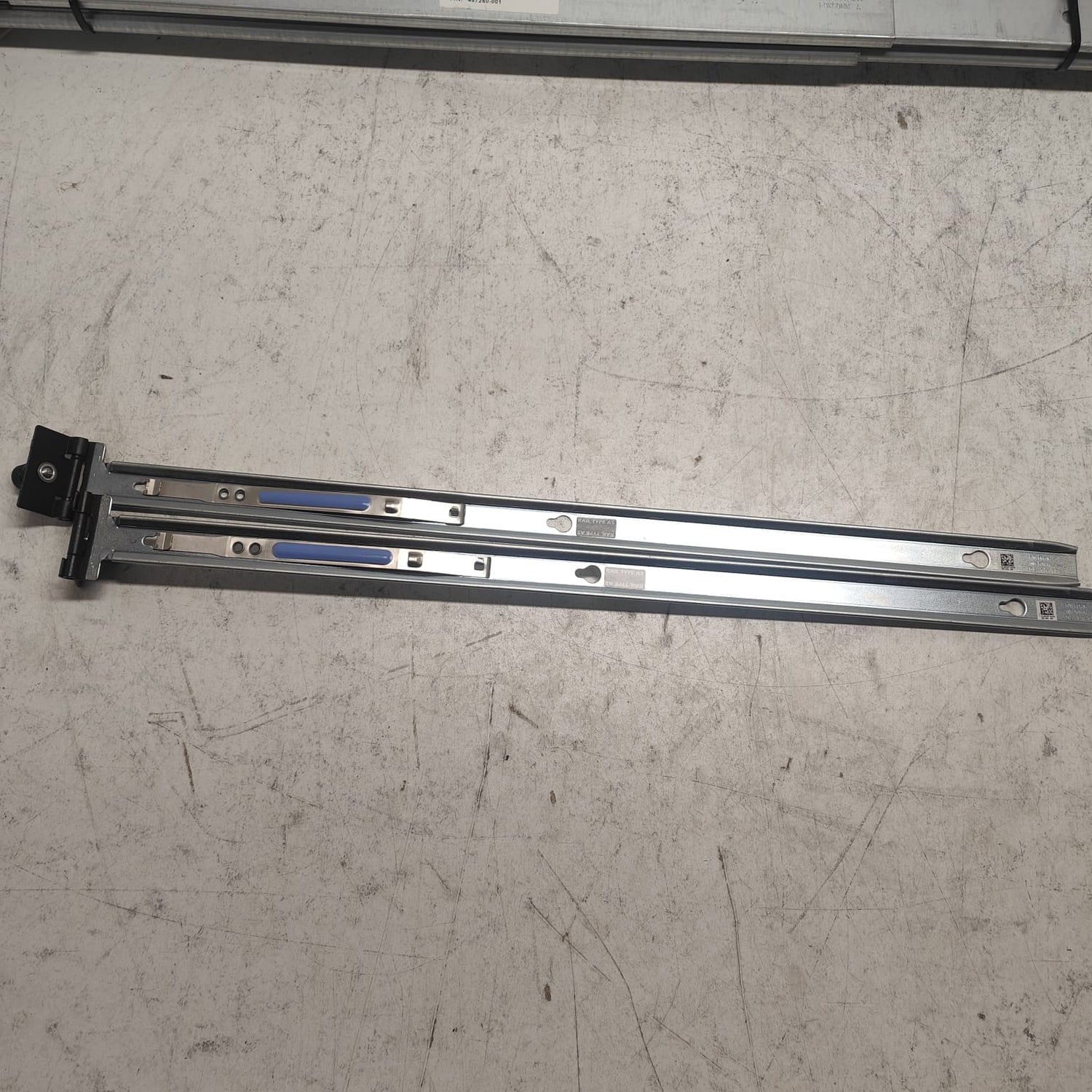

DELL FORCE FF6J6_ 10/8164/8132 RAIL KIT (Missing Inner Rail)

HP 603588-B21 PROLIANT BL460C G7 2X E5620 2.4GHz 6gb ram

The HP BL490c G6 is a half-height blade server for the HP BladeSystem c3000 and c7000 enclosures. It belongs to the 6th generation (G6) ProLiant blade family and offers a good balance of performance, memory capacity, and storage for its compact form factor. This particular configuration comes with one Intel Xeon X5650 processor and 12GB DDR3 RAM.

The BL490c G6 is a versatile, high-density blade server designed for virtualization, database, web hosting, and general enterprise workloads. It supports up to two Intel Xeon 5600-series processors, up to 192GB of DDR3 memory, and two hot-plug small form factor (SFF) SAS/SATA hard drives. It provides excellent expandability with two mezzanine slots for additional networking or Fibre Channel connectivity.

HP 637391-B21 PROLIANT BL460c G7 2x E5649 2.5GHz 36GB RAM

The HP 603569-B21 is a pre-configured HP ProLiant BL460c G7 server blade — a half-height, dual-socket blade server from the HP BladeSystem c-Class generation (launched 2010–2011), based on the Intel Xeon 5600 series (Westmere-EP) processors.

This specific configuration includes:

• Processors: 1 × Intel Xeon E5640 (4 cores / 8 threads, 2.66 GHz base clock, 2.93 GHz turbo, 12 MB L3 cache, 80W TDP) → Note: The blade supports dual CPUs; this is a single-CPU config (second CPU can be added)
• Memory: 48 GB DDR3 ECC Registered RDIMM (typically configured as 12 × 4 GB or 6 × 8 GB DDR3-1333 modules)

Product Description

The ProLiant BL460c G7 is a high-density, virtualization-optimized blade server designed for enterprise data centers running VMware vSphere/ESXi, Microsoft Hyper-V, Citrix XenServer, or bare-metal workloads such as databases, ERP/CRM, web/application serving, file/print services, and test/dev environments.

Key features of the BL460c G7 platform:

• Dual-socket Intel Xeon 5600-series support (up to 12 cores/24 threads per blade with turbo boost when dual CPUs installed)
• Up to 18 DIMM slots (9 per CPU) for maximum 384 GB DDR3 ECC memory
• Internal storage: Up to 2 × 2.5" SAS/SATA hot-plug SFF drives with embedded HP Smart Array P410i RAID controller (0/1/1+0/5/5+0/10/50 with optional cache)
• Networking: 2 × 1 GbE embedded NICs (Broadcom BCM5718 or Intel-based) + up to 2 mezzanine cards (e.g., 10GbE, Fibre Channel, InfiniBand)
• Management: Integrated iLO 3 (Integrated Lights-Out 3) with dedicated management port for remote KVM, virtual media, power control, and monitoring
• Form Factor: Half-height blade — fits HP BladeSystem c3000 (8 slots) or c7000 (16 slots) enclosures

A single c7000 enclosure can host up to 16 BL460c G7 blades, providing high core/memory density in a compact 10U footprint.

HP 637391-B21 PROLIANT BL460c G7 2x E5649 2.5GHz 36GB RAM

HP 637391-B21 PROLIANT BL460c G7 2x E5649 2.5GHz 36GB RAM

HP 603588-B21 PROLIANT BL460C G7 2X E5620 2.4GHz 6gb ram

HP 637391-B21 PROLIANT BL460c G7 2x E5649 2.5GHz 36GB RAM

637392-B21 HP PROLIANT BL490C G7 X5675 12G S

637392-B21 HP PROLIANT BL490C G7 X5675 12G S

The HP 637392-B21 is a pre-configured HP ProLiant BL490c G7 server blade (also sold under similar CTO/base part numbers like 637392-B21 or 637393-B21 in some regions) — a half-height, dual-socket blade server from the HP BladeSystem c-Class generation (launched 2010–2011), based on the Intel Xeon 5600 series (Westmere-EP) processors.

This specific configuration includes:

• CPU: 2 × Intel Xeon X5675 (6 cores / 12 threads each, 3.06 GHz base, 3.46 GHz turbo, 12 MB L3 cache, 95W TDP)
  • Total: 12 cores / 24 threads
• Memory: 96 GB DDR3 ECC Registered RDIMM (typically 12 × 8 GB DDR3-1333 or 6 × 16 GB DDR3-1333)
• Form Factor: Half-height (c-Class) blade for HP BladeSystem c3000/c7000 enclosures

The HP ProLiant BL490c G7 is a high-density, virtualization-optimized blade server designed for enterprise data centers, virtualization hosts (VMware ESXi, Microsoft Hyper-V, Citrix XenServer), databases, ERP/CRM, web/application serving, and general-purpose compute workloads in the early 2010s.

It features:

• Dual Intel Xeon 5600-series processors (Westmere-EP) with Hyper-Threading, Turbo Boost, and Intel VT-x/VT-d
• Up to 18 DIMM slots (9 per CPU) supporting up to 384 GB DDR3 ECC memory
• Flexible storage: Up to 2 × 2.5" SAS/SATA hot-plug drives (SFF) with hardware RAID (HP Smart Array P410i controller embedded)
• Networking: 2 × 1 GbE embedded NICs (Broadcom or Intel-based) + optional mezzanine NICs (up to 2 mezzanine cards)
• Management: Integrated Lights-Out 3 (iLO 3) with dedicated management port for remote KVM, virtual media, power control, and monitoring

This blade is optimized for dense virtualization — a single c7000 enclosure (10 slots) can host up to 20 BL490c G7 blades, delivering high core/memory density in a compact 10U footprint.

The HP 637392-B21 is a pre-configured HP ProLiant BL490c G7 server blade — a half-height, dual-socket blade server from the HP BladeSystem c-Class generation (launched around 2010–2011), based on the Intel Xeon 5600 series (Westmere-EP) processors.

This specific configuration includes:

• Processors: 2 × Intel Xeon X5675 (6 cores / 12 threads each, 3.06 GHz base clock, 3.46 GHz turbo, 12 MB L3 cache, 95W TDP) → Total compute: 12 cores / 24 threads
• Memory: 96 GB DDR3 ECC Registered RDIMM (typically configured as 12 × 8 GB or 6 × 16 GB DDR3-1333 modules)

The ProLiant BL490c G7 is a high-density virtualization and general-purpose blade server optimized for enterprise data centers running VMware vSphere/ESXi, Microsoft Hyper-V, Citrix XenServer, or bare-metal workloads such as databases, ERP/CRM, web/application serving, file/print services, and test/dev environments.

Key features of the BL490c G7 platform:

• Dual-socket Intel Xeon 5600-series support (up to 12 cores/24 threads per blade with turbo boost)
• Up to 18 DIMM slots (9 per CPU) for maximum 384 GB DDR3 ECC memory
• Internal storage: Up to 2 × 2.5" SAS/SATA hot-plug SFF drives with embedded HP Smart Array P410i RAID controller (0/1/1+0/5/5+0/10/50 with optional cache)
• Networking: 2 × 1 GbE embedded NICs (Broadcom BCM5718 or Intel-based) + up to 2 mezzanine cards (e.g., 10GbE, Fibre Channel, InfiniBand)
• Management: Integrated iLO 3 (Integrated Lights-Out 3) with dedicated management port for remote KVM, virtual media, power control, and monitoring
• Form Factor: Half-height blade — fits HP BladeSystem c3000 (8 slots) or c7000 (16 slots) enclosures

A single c7000 enclosure can host up to 16 BL490c G7 blades, providing high core/memory density in a compact 10U footprint.

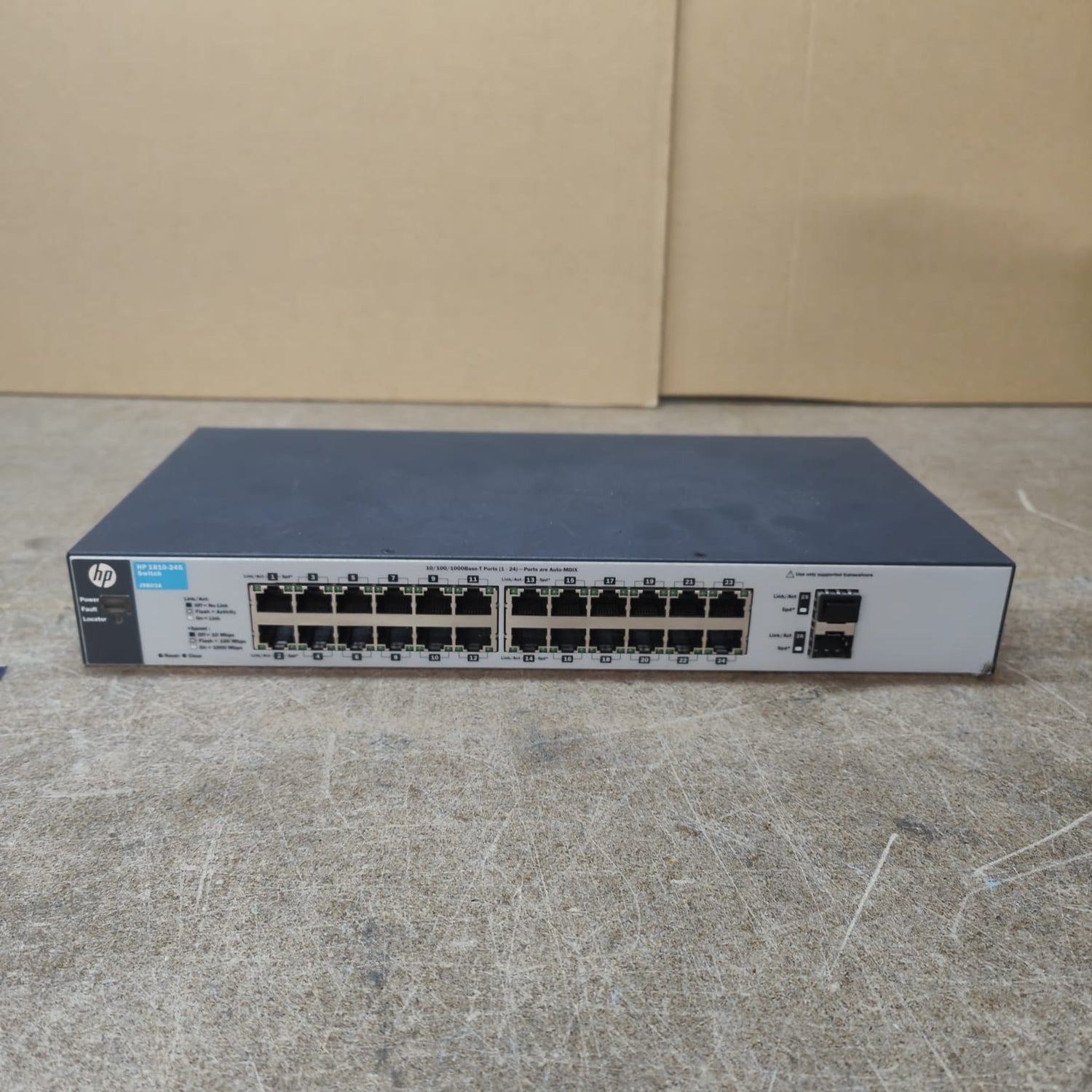

The HP J9803A (also known as HPE 1810-24G v2 Switch) is a 24-port Gigabit Ethernet smart-managed switch from the HP 1810 Switch Series — a compact, affordable, fanless Layer 2 switch designed for small businesses, branch offices, small IT environments, classrooms, conference rooms, or quiet locations needing reliable Gigabit connectivity with basic management features.

Product Description

This switch provides 24 × 10/100/1000BASE-T RJ-45 autosensing ports for copper connections and 2 × SFP slots (100/1000 Mbps) for fiber uplinks or additional Gigabit connectivity (using compatible mini-GBICs/SFP transceivers like 1000BASE-SX/LX or 100BASE-FX). It offers simple web-based management (no CLI required) for configuration, monitoring, and basic troubleshooting — ideal for non-technical users or environments without dedicated network admins.

Key features include:

• IEEE 802.3az Energy Efficient Ethernet (EEE) — reduces power consumption during low traffic periods
• VLAN support (port-based and 802.1Q)
• QoS (port-based priority queuing, 802.1p/DSCP)
• IGMP snooping for multicast optimization
• Link aggregation (LACP/802.3ad)
• Spanning Tree (STP/RSTP/MSTP)
• Port mirroring, loop prevention, broadcast storm control, cable diagnostics
• Fanless design — completely silent operation (passive cooling)

The 1810-24G v2 is a minor hardware/firmware refresh of the original 1810-24G, with improved power efficiency and support in later firmware versions. It supports flexible mounting: 19-inch rack (ears included), wall, desktop, or under-table installation.

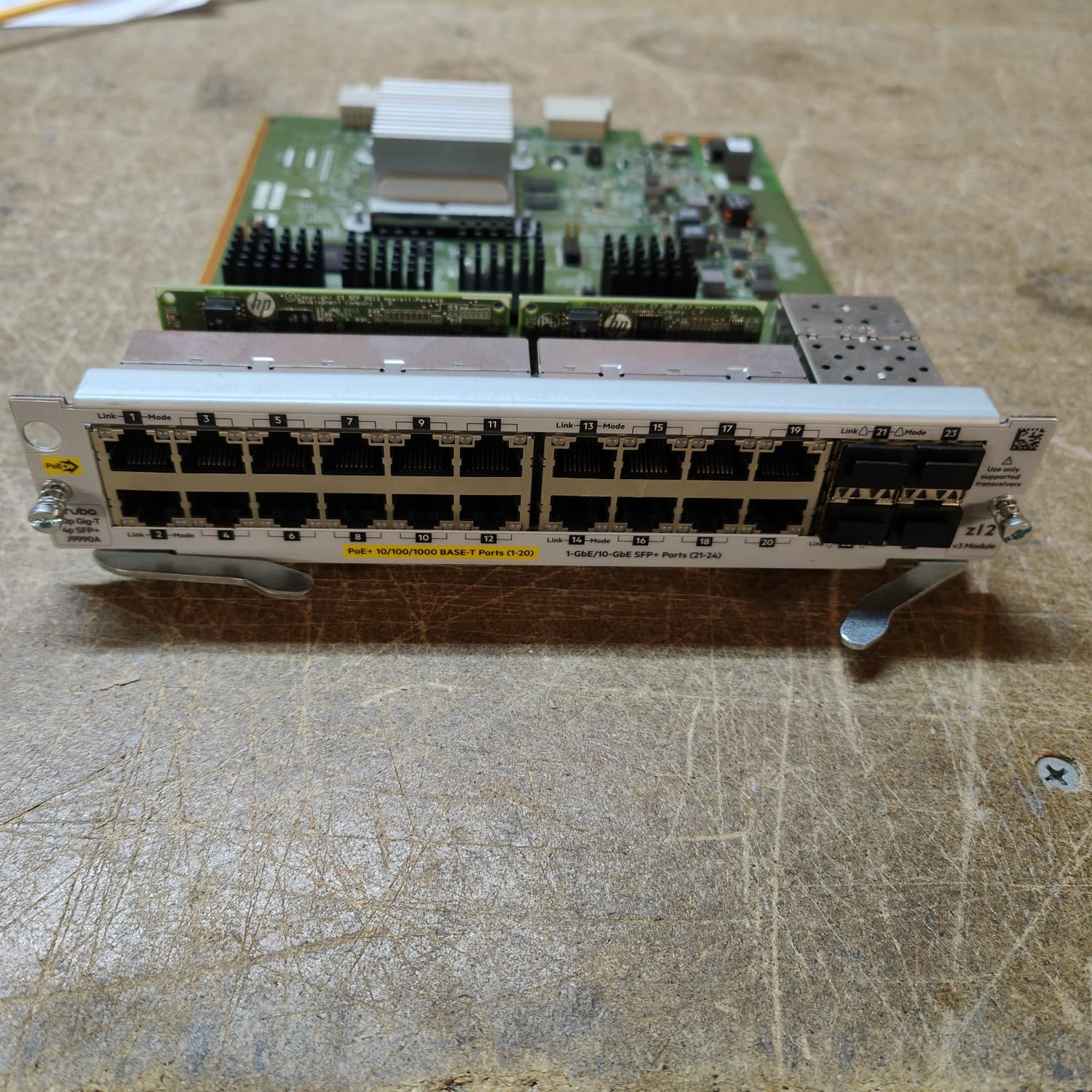

The HP J9990A is a high-performance expansion module for the HPE Aruba 5400R zl2 Series switches. It provides 20 x 1GbE PoE+ ports and 4 x 10GbE SFP+ uplink ports, significantly expanding both access port density and high-speed connectivity in the modular zl2 chassis.

This v3 module is designed for the Aruba 5400R zl2 platform and delivers full wire-speed performance with Power over Ethernet Plus (PoE+) on all 20 copper ports (up to 30W per port). The 4 SFP+ ports support 10 Gigabit fiber or DAC connections for uplinks or stacking. It is ideal for powering IP phones, access points, cameras, and IoT devices while providing high-bandwidth backbone connectivity.
