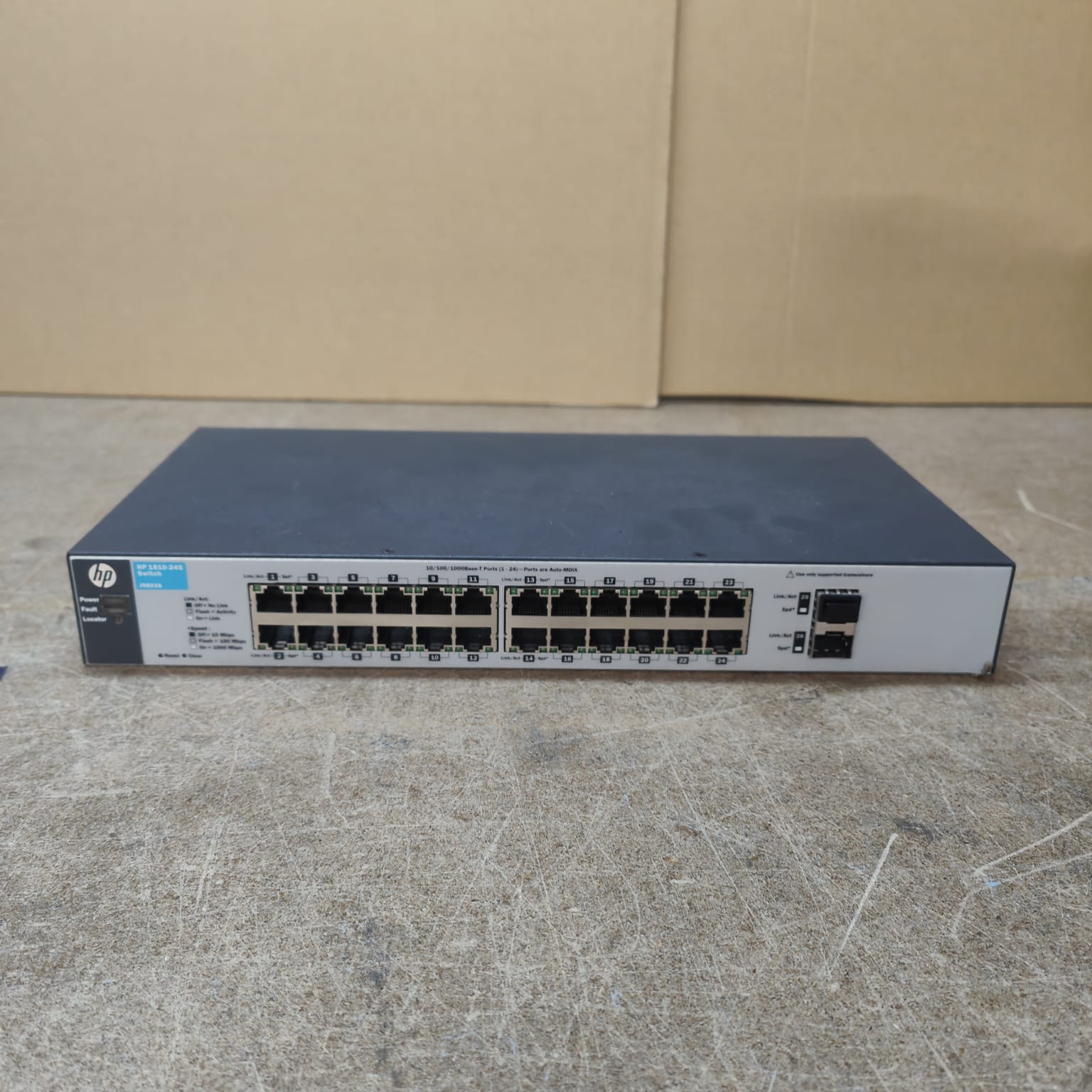

HP J9803A 1810-24G 24 ports switch

$71.40 (Ex. GST)

Out of stock

The HP J9803A (also known as HPE 1810-24G v2 Switch) is a 24-port Gigabit Ethernet smart-managed switch from the HP 1810 Switch Series — a compact, affordable, fanless Layer 2 switch designed for small businesses, branch offices, small IT environments, classrooms, conference rooms, or quiet locations needing reliable Gigabit connectivity with basic management features.

Product Description

This switch provides 24 × 10/100/1000BASE-T RJ-45 autosensing ports for copper connections and 2 × SFP slots (100/1000 Mbps) for fiber uplinks or additional Gigabit connectivity (using compatible mini-GBICs/SFP transceivers like 1000BASE-SX/LX or 100BASE-FX). It offers simple web-based management (no CLI required) for configuration, monitoring, and basic troubleshooting — ideal for non-technical users or environments without dedicated network admins.

Key features include:

  • IEEE 802.3az Energy Efficient Ethernet (EEE) — reduces power consumption during low traffic periods
  • VLAN support (port-based and 802.1Q)
  • QoS (port-based priority queuing, 802.1p/DSCP)
  • IGMP snooping for multicast optimization
  • Link aggregation (LACP/802.3ad)
  • Spanning Tree (STP/RSTP/MSTP)
  • Port mirroring, loop prevention, broadcast storm control, cable diagnostics
  • Fanless design — completely silent operation (passive cooling)

The 1810-24G v2 is a minor hardware/firmware refresh of the original 1810-24G, with improved power efficiency and support in later firmware versions. It supports flexible mounting: 19-inch rack (ears included), wall, desktop, or under-table installation.

Model / Part Number: HP J9803A (HPE 1810-24G v2 Switch)

Ports: 24 × 10/100/1000 RJ-45 + 2 × SFP (100/1000 Mbps)

Management: Smart-managed (web GUI only; no CLI)

PoE Support: None (non-PoE model)

Power Supply: Internal fixed AC (100–240V, 50/60 Hz)

Fanless Design: Yes — silent operation

Form Factor: 1U rack-mountable (hardware included) or desktop/wall/under-table

Status (2025–2026): Legacy / End-of-Sale / End-of-Support — HP/HPE ended support years ago (EoS around 2017–2018); still widely used in small networks

Market Availability: Refurbished or used units (pulled from small offices, schools, or decommissioned setups)

Common Sources: eBay, Amazon (renewed), surplus networking resellers (Renewtech, ServerSupply, NTC-Tech)

Typical Price Range: $50–$150 (refurbished, depending on condition)

Switching Capacity: 52 Gbps (non-blocking)

Forwarding Rate: 38.7 Mpps

MAC Address Table: 8,000 entries

VLAN Support: Port-based VLANs and 802.1Q (up to 64 VLANs)

Jumbo Frames: Up to 9,216 bytes

QoS: Port-based priority queuing (4 queues), 802.1p/DSCP

Multicast: IGMP snooping

Link Aggregation: LACP (IEEE 802.3ad) — up to 8 trunks

Security: Broadcast storm control, loop prevention, DoS protection

Memory: 128 MB RAM, 8 MB flash; packet buffer 512 KB

Power Consumption: ≈22 W maximum (low draw due to fanless/non-PoE)

Cooling: Fanless (passive heatsink)

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Dimensions: 32.99 cm (W) × 17.3 cm (D) × 4.39 cm (H) — ≈13" × 6.8" × 1.73" (1U height)

Weight: ≈1.15 kg (2.54 lb)

Acoustics: 0 dB (no fan — silent operation)

Mounting: EIA-standard 19-inch rack (hardware included), wall, desktop, under-table
