Storage

Cisco AIR-SAP702I-A-K9 Aironet 702I IEEE 802.11n 300 Mbps Wireless Access Point

Cisco C220-MS4_FCH2025V0CD Intel Xeon E5-2609v3 1.90Ghz, 64GB MEM, 2x 450GB 15K SAS Server

CISCO C819GW-LTE-GA-EK9 819H ethernet x 4, ethernet x 2, serial x 1

DELL CG2YM H330 SAS 12GB PCIE

The Cisco 3745-IO-2FE (also referenced as Cisco Catalyst 3745 2-Port Fast Ethernet IO Controller) is an internal daughtercard / I/O controller that was factory-installed or field-replaceable on the Cisco 3745 Modular Access Router (part of the Cisco 3700 Series routers, launched early 2000s).

Product Description

This small card mounts directly onto the motherboard of the Cisco 3745 router and adds two additional Fast Ethernet (10/100 Mbps) RJ-45 ports (typically labeled FastEthernet0/2 and FastEthernet0/3 in IOS) beyond the two built-in Fast Ethernet ports on the base chassis (FastEthernet0/0 and FastEthernet0/1).

Key points:

• It is not a modular network module (NM), WAN interface card (WIC), or external card — it is an integrated I/O controller soldered or plugged internally.
• Adds basic Layer 2 Ethernet connectivity (10/100 Mbps, full/half-duplex, autosensing) for LAN segments, DMZ, separate VLANs, or connecting to downstream switches/routers.
• Fully integrated with the router's main forwarding engine — supports all standard Cisco IOS Layer 2/3 features on these ports (VLANs, QoS, ACLs, static routing, etc.).
• Commonly seen in Cisco 3745 configurations that needed more than two Fast Ethernet ports without consuming external WIC/NM slots.

Nimble Storage CS400 San Controller w/Super X8DTS-F Xeon E5645 2.40GHz 24GB RAM

The Dell PowerEdge R720 (service tag/serial number 35K1621) with 16 × 2.5-inch SFF disk bays, 1 × Intel Xeon E5-2665 CPU, and 80 GB RAM is a 2U rack-mount enterprise server from Dell's 12th-generation PowerEdge family (launched 2012). This is a very common, highly configurable platform that was widely deployed for virtualization, databases, file serving, web/application hosting, backup targets, and general-purpose workloads throughout the 2010s and early 2020s.

The PowerEdge R720 is a dual-socket 2U rack server based on the Intel Xeon E5-2600 v1 (Sandy Bridge-EP) architecture. Your configuration includes:

• Chassis: 16 × 2.5-inch SFF (Small Form Factor) hot-swap drive bays (supports SAS/SATA HDDs/SSDs; optional 8 × 3.5" LFF config available but this unit is SFF)
• Processors: 1 × Intel Xeon E5-2665 (8 cores / 16 threads, 2.4 GHz base clock, 3.1 GHz turbo, 20 MB L3 cache, 115W TDP) → Single-CPU config (second CPU slot empty — can be upgraded to dual E5-2600 v1/v2 series)
• Memory: 80 GB DDR3 ECC Registered RDIMM (likely 10 × 8 GB or 5 × 16 GB DDR3-1333/1600 modules; maximum supported 768 GB with 24 DIMM slots)

This server offers excellent balance of compute, memory, storage, and I/O for its generation. The 16 SFF bays provide flexible storage options (e.g., high-IOPS SSDs for boot/OS/performance tier + high-capacity SAS/SATA for bulk data). The embedded PERC RAID controller (typically PERC H710 or H710P in this era) supports RAID 0/1/5/6/10/50/60 with optional battery-backed cache.

Networking and expansion are strong:

• 4 × 1 GbE embedded NICs (Broadcom or Intel-based)
• Up to 7 × PCIe 3.0 slots (depending on riser configuration)
• iDRAC7 (Integrated Dell Remote Access Controller 7) with dedicated management port for full out-of-band remote management (KVM, virtual media, power control, monitoring)

The R720 runs VMware ESXi, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux, Ubuntu, Oracle Linux, or older OSes — with full Dell validation for virtualization hypervisors and enterprise applications.

Dell PowerEdge R720 16x SFF disk bays Rackmount Server SN 9SNFD25 inc. 1x E5-2640 cpu, 64GB Ram

The Hitachi DF850-CBSLR (also referred to as DF850-CBSLR or part of the Hitachi Unified Storage 110 (HUS110) family) is a dual-controller LFF (Large Form Factor) storage enclosure — a 12-bay 3.5-inch disk array unit from Hitachi Data Systems (HDS, now Hitachi Vantara) Unified Storage platform, launched in the early 2010s.

The DF850-CBSLR is a controller-equipped base enclosure (Controller Box with Single-Controller or Dual-Controller LFF Rear configuration) that serves as the primary storage building block for Hitachi Unified Storage (HUS) 110 systems. It integrates dual RAID controllers (for high availability and failover), a 12 × 3.5-inch LFF SAS/SATA drive bay backplane, and all necessary I/O modules, power supplies, fans, and midplane for direct-attached or SAN-connected storage.

Key characteristics:

• Dual active/active controllers — each with embedded cache, SAS ports, and FC/iSCSI host interfaces (depending on configuration)
• 12 × 3.5-inch LFF hot-swap drive bays — supports SAS HDDs (7.2K/10K/15K) and SATA HDDs for capacity-optimized storage
• SAS-2 (6 Gbps) back-end connectivity (via internal SAS expanders)
• Modular expansion — can connect to additional DF850-DBS/DBL drive boxes (expansion shelves) for scaling capacity up to dozens of drives
• RAID support — RAID 0/1/5/6/10/50/60 via Hitachi Storage Navigator Modular 2 (SNM2) management software
• Host interfaces — typically 8/16 Gb Fibre Channel, 1/10 Gb iSCSI, or FCoE (via optional I/O modules)
• Redundant hot-swap components — dual PSUs, dual controllers, redundant fans/cooling
• Front-to-back airflow — standard for data center racks

This enclosure was commonly used in:

• Midrange SAN/NAS storage for block/file workloads
• Backup targets, archival, secondary storage, or VTL (Virtual Tape Library)
• Small-to-medium enterprise environments before migration to newer Hitachi VSP or HPE/Nimble/NetApp platforms

NAJ-1001 NetApp DS2246 24-Drive Storage Array 2x IOM6 Controllers 2x Power Supply No HD

The Cisco DS-9SLOT-FAN is the official fan tray module designed specifically for the Cisco MDS 9509 Director-class Fibre Channel switch. It is a high-capacity, redundant cooling unit that provides essential airflow across the 9-slot chassis, protecting supervisors, Fibre Channel switching modules, and power supplies from overheating in high-density SAN environments.

This fan tray is a critical FRU (Field Replaceable Unit) for the MDS 9509. It contains multiple high-speed fans in a redundant configuration that automatically adjusts speed based on internal temperature. The DS-9SLOT-FAN is hot-swappable, allowing replacement without powering down the switch, which is essential for maintaining 24/7 uptime in enterprise data centers and SAN fabrics.

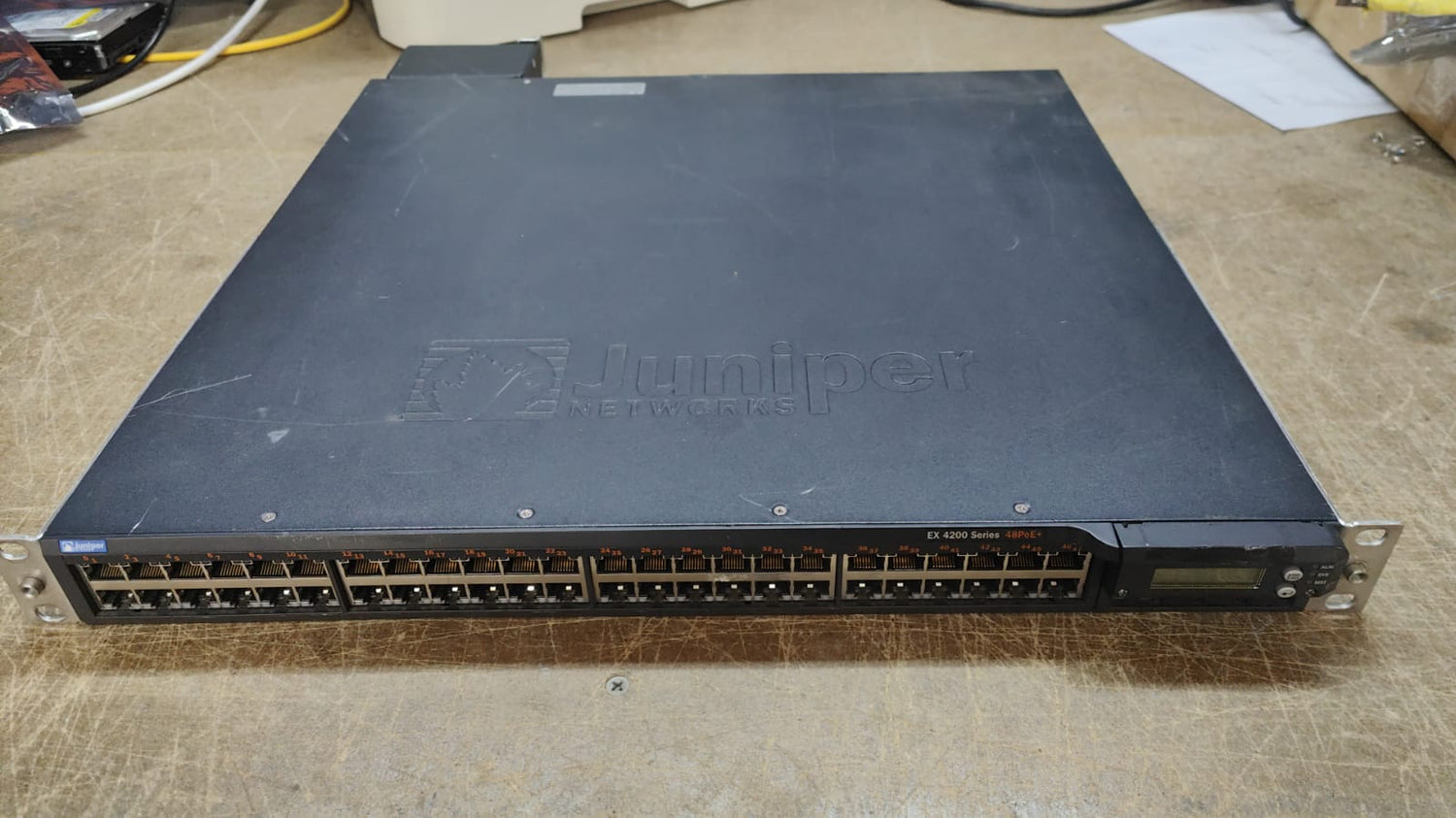

The Juniper EX4200-48PX is a high-performance, stackable Layer 3 Gigabit Ethernet switch with 48 x 10/100/1000BASE-T PoE+ ports and 4 x 10GbE SFP+ uplink ports. It belongs to Juniper’s popular EX4200 series and is designed for access and aggregation layers in enterprise campus and data center environments where Power over Ethernet (PoE+) and high availability are required.

This switch delivers full wire-speed performance on all 48 Gigabit ports with PoE+ (IEEE 802.3at) support up to 30W per port. It features Juniper’s Virtual Chassis technology, allowing up to 10 EX4200 switches to be stacked as a single logical device. The EX4200-48PX runs Junos OS, providing advanced Layer 2 and Layer 3 features including routing protocols (OSPF, BGP, IS-IS), QoS, security (802.1X, firewall filters), and comprehensive management capabilities.

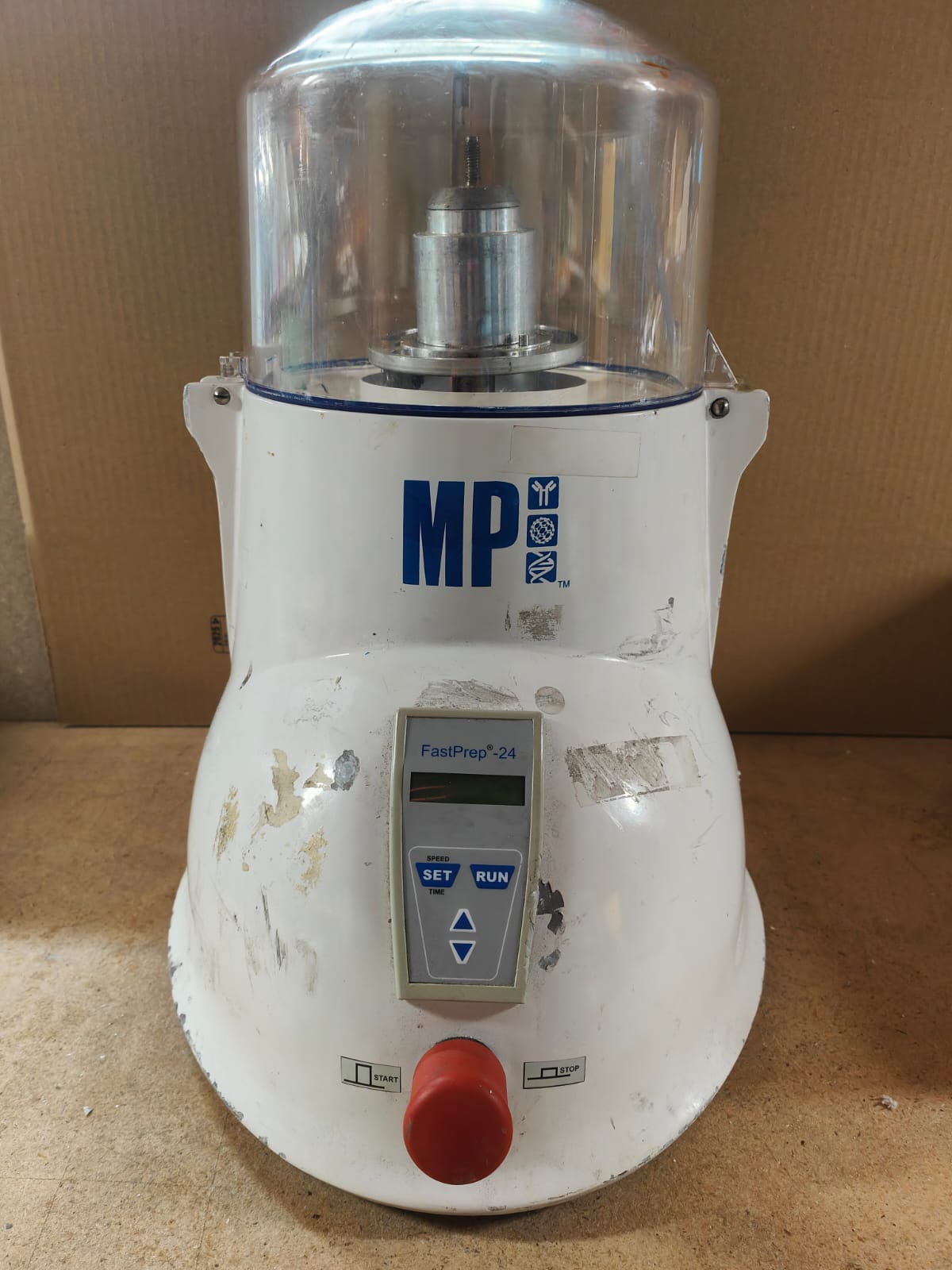

The MP Biomedicals FastPrep-24 is a high-performance benchtop bead-beating homogenizer used for rapid and efficient lysis and homogenization of biological samples. It is widely regarded as one of the best instruments for mechanical disruption of tough samples in molecular biology, genomics, microbiology, and proteomics laboratories.

The FastPrep-24 can simultaneously process up to 24 samples in 2 mL tubes using high-speed linear motion and specialized lysing matrix beads. It delivers consistent and reproducible results in seconds, effectively breaking down difficult samples such as bacteria, yeast, fungi, plant tissues, animal tissues, soil, feces, and environmental matrices to release high-quality DNA, RNA, and proteins for downstream applications
