Parts

HP 637391-B21 PROLIANT BL460c G7 2x E5649 2.5GHz 36GB RAM

HP 637391-B21 PROLIANT BL460c G7 2x E5649 2.5GHz 36GB RAM

HP 603588-B21 PROLIANT BL460C G7 2X E5620 2.4GHz 6gb ram

637392-B21 HP PROLIANT BL490C G7 X5675 12G S

637392-B21 HP PROLIANT BL490C G7 X5675 12G S

HP 637391-B21 PROLIANT BL460c G7 2x E5649 2.5GHz 36GB RAM

The HP 637392-B21 is a pre-configured HP ProLiant BL490c G7 server blade (also sold under similar CTO/base part numbers like 637392-B21 or 637393-B21 in some regions) — a half-height, dual-socket blade server from the HP BladeSystem c-Class generation (launched 2010–2011), based on the Intel Xeon 5600 series (Westmere-EP) processors.

This specific configuration includes:

• CPU: 2 × Intel Xeon X5675 (6 cores / 12 threads each, 3.06 GHz base, 3.46 GHz turbo, 12 MB L3 cache, 95W TDP)
  • Total: 12 cores / 24 threads
• Memory: 96 GB DDR3 ECC Registered RDIMM (typically 12 × 8 GB DDR3-1333 or 6 × 16 GB DDR3-1333)
• Form Factor: Half-height (c-Class) blade for HP BladeSystem c3000/c7000 enclosures

The HP ProLiant BL490c G7 is a high-density, virtualization-optimized blade server designed for enterprise data centers, virtualization hosts (VMware ESXi, Microsoft Hyper-V, Citrix XenServer), databases, ERP/CRM, web/application serving, and general-purpose compute workloads in the early 2010s.

It features:

• Dual Intel Xeon 5600-series processors (Westmere-EP) with Hyper-Threading, Turbo Boost, and Intel VT-x/VT-d
• Up to 18 DIMM slots (9 per CPU) supporting up to 384 GB DDR3 ECC memory
• Flexible storage: Up to 2 × 2.5" SAS/SATA hot-plug drives (SFF) with hardware RAID (HP Smart Array P410i controller embedded)
• Networking: 2 × 1 GbE embedded NICs (Broadcom or Intel-based) + optional mezzanine NICs (up to 2 mezzanine cards)
• Management: Integrated Lights-Out 3 (iLO 3) with dedicated management port for remote KVM, virtual media, power control, and monitoring

This blade is optimized for dense virtualization — a single c7000 enclosure (10 slots) can host up to 20 BL490c G7 blades, delivering high core/memory density in a compact 10U footprint.

The HP 637392-B21 is a pre-configured HP ProLiant BL490c G7 server blade — a half-height, dual-socket blade server from the HP BladeSystem c-Class generation (launched around 2010–2011), based on the Intel Xeon 5600 series (Westmere-EP) processors.

This specific configuration includes:

• Processors: 2 × Intel Xeon X5675 (6 cores / 12 threads each, 3.06 GHz base clock, 3.46 GHz turbo, 12 MB L3 cache, 95W TDP) → Total compute: 12 cores / 24 threads
• Memory: 96 GB DDR3 ECC Registered RDIMM (typically configured as 12 × 8 GB or 6 × 16 GB DDR3-1333 modules)

The ProLiant BL490c G7 is a high-density virtualization and general-purpose blade server optimized for enterprise data centers running VMware vSphere/ESXi, Microsoft Hyper-V, Citrix XenServer, or bare-metal workloads such as databases, ERP/CRM, web/application serving, file/print services, and test/dev environments.

Key features of the BL490c G7 platform:

• Dual-socket Intel Xeon 5600-series support (up to 12 cores/24 threads per blade with turbo boost)
• Up to 18 DIMM slots (9 per CPU) for maximum 384 GB DDR3 ECC memory
• Internal storage: Up to 2 × 2.5" SAS/SATA hot-plug SFF drives with embedded HP Smart Array P410i RAID controller (0/1/1+0/5/5+0/10/50 with optional cache)
• Networking: 2 × 1 GbE embedded NICs (Broadcom BCM5718 or Intel-based) + up to 2 mezzanine cards (e.g., 10GbE, Fibre Channel, InfiniBand)
• Management: Integrated iLO 3 (Integrated Lights-Out 3) with dedicated management port for remote KVM, virtual media, power control, and monitoring
• Form Factor: Half-height blade — fits HP BladeSystem c3000 (8 slots) or c7000 (16 slots) enclosures

A single c7000 enclosure can host up to 16 BL490c G7 blades, providing high core/memory density in a compact 10U footprint.

Cisco ISR4221/K9 Integrated Services Router, 2x RJ-45-based ports, 1x SFP-based port

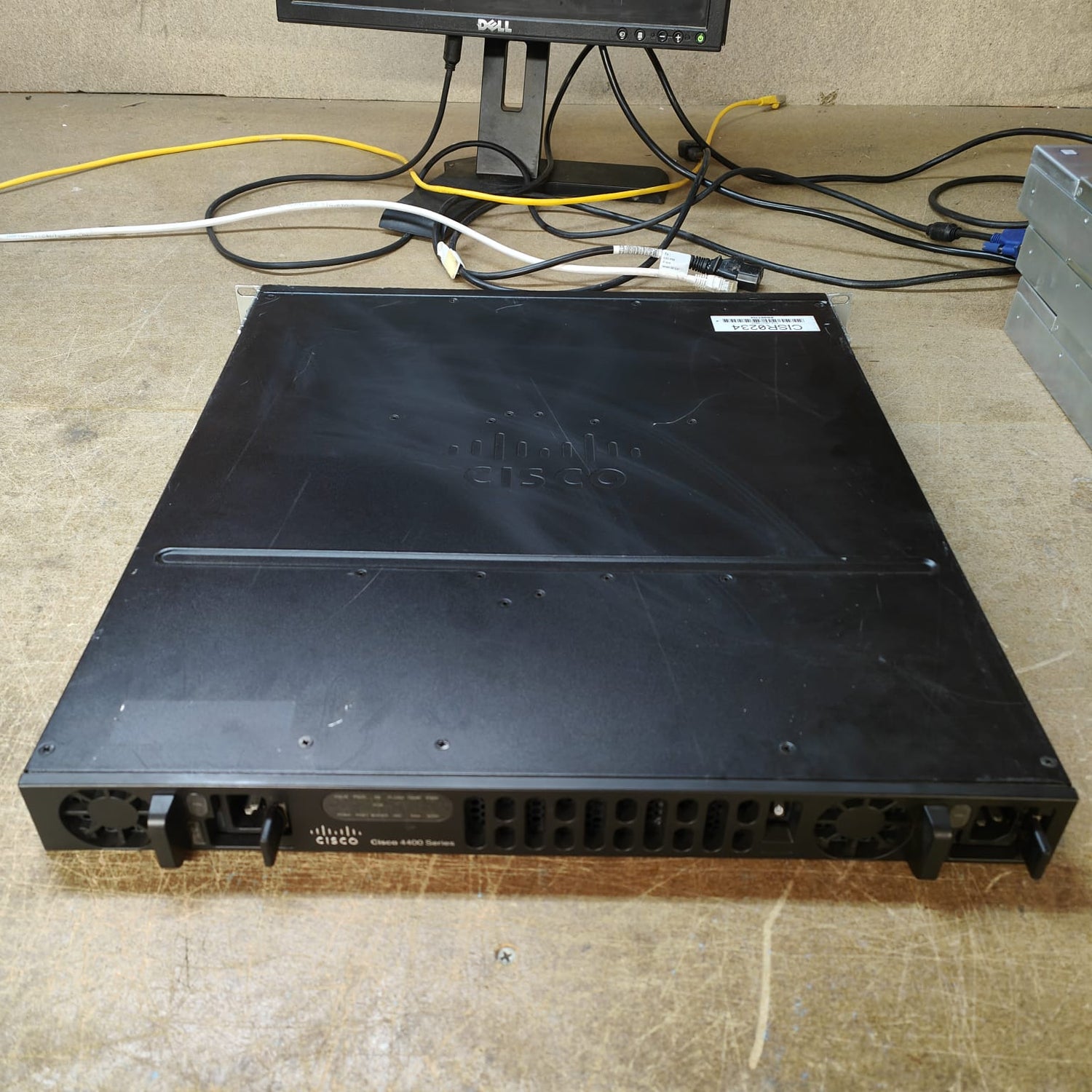

The Cisco ISR4331/K9 is a 1U rack-mountable, modular Integrated Services Router from the Cisco ISR 4000 Series (launched 2013–2014). It is a mid-range branch router designed for medium-sized businesses, branch offices, and distributed enterprise WAN edge deployments requiring advanced routing, security, SD-WAN, voice, and application optimization in a compact, high-performance platform.

The ISR4331/K9 is a 3-port Gigabit Ethernet router with modular expansion capabilities. It combines routing, security, voice, and application services into a single 1U chassis. Key features include:

• 3 onboard Gigabit Ethernet RJ-45 ports (GigabitEthernet0/0/0, 0/0/1, 0/0/2) — configurable as LAN or WAN interfaces
• 2 NIM slots (Network Interface Modules) for expansion (e.g., T1/E1, serial, ISDN, LTE, voice, additional Ethernet)
• 1 SM-X slot (Service Module slot) for higher-density modules (e.g., SM-X-72FXS/DID voice module, SM-X-64FXO, UCS-E server blades)
• 1 ISM slot (Internal Service Module) for optional security/acceleration cards (e.g., ISM-VPN)
• Dual redundant power supply bays (default single PSU; optional second for redundancy)
• Redundant hot-swap fans (front-to-back airflow)

It runs Cisco IOS XE with modular software licensing:

• IP Base (default) — basic routing, security, QoS
• Upgradable to Security, UC (Unified Communications), AppX (Application Experience), or full UC license bundles

Common deployment scenarios:

• Branch office WAN router with MPLS/Internet breakout
• DMVPN hub/spoke or GETVPN
• Voice gateway (SRST, CME, CUBE)
• SD-WAN edge (with Viptela vManage/IWAN)
• Application visibility & control (AVC, NBAR2)

The "K9" in the part number indicates the crypto-enabled version (IPsec VPN support).

HP J9147A PROCURVE 2910AL-48G SWITCH

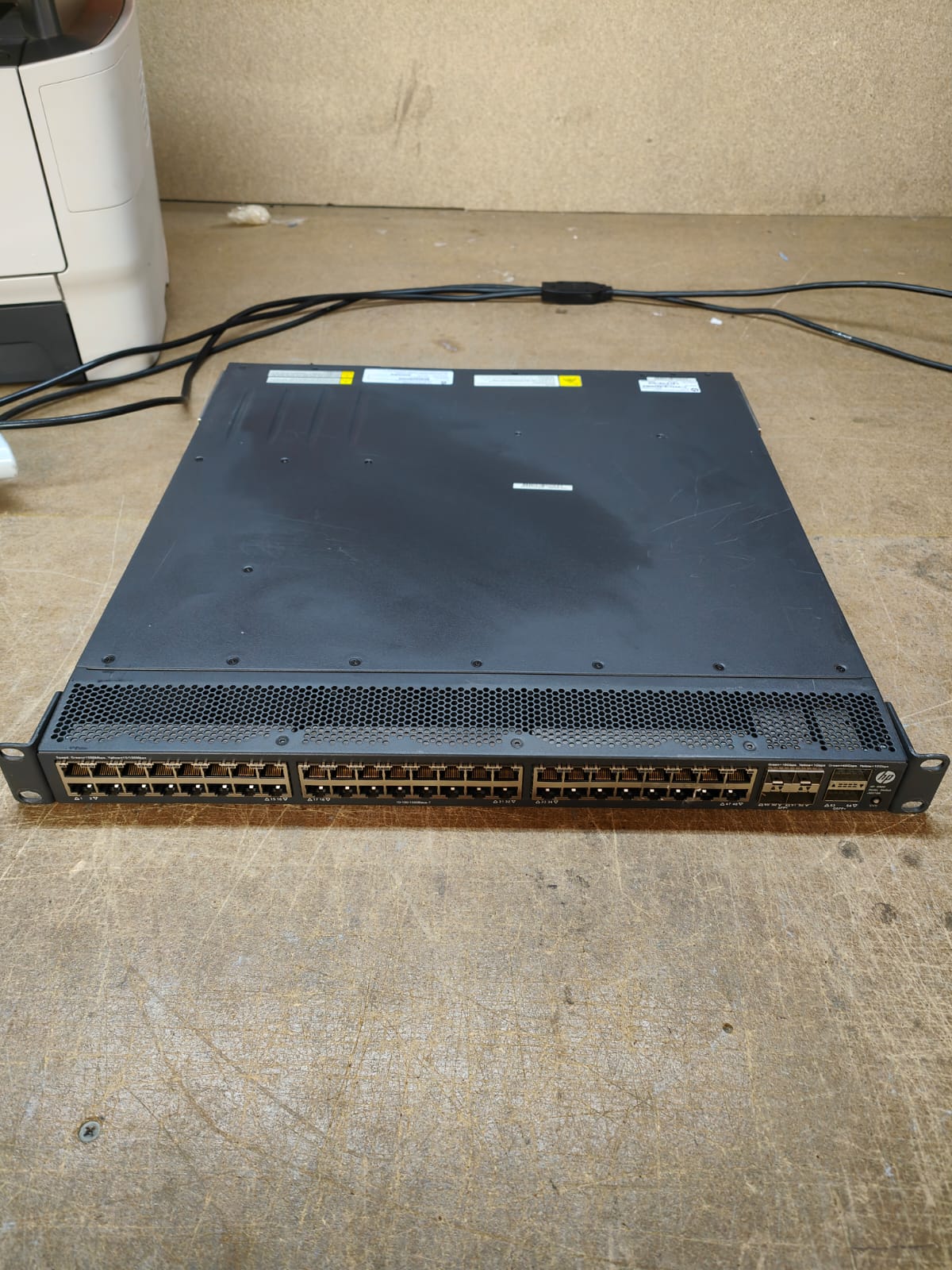

HP JG510A 5900AF-48G-4XG-2QSFP+ 48-Port Switch

HP JG619A FlexFabric 12910 AC Network Chassis
