FlashArray//M20 Pure Storage 3U 20x SFF Flash Array

$3,754.45 (Ex. GST)

In stock: 1

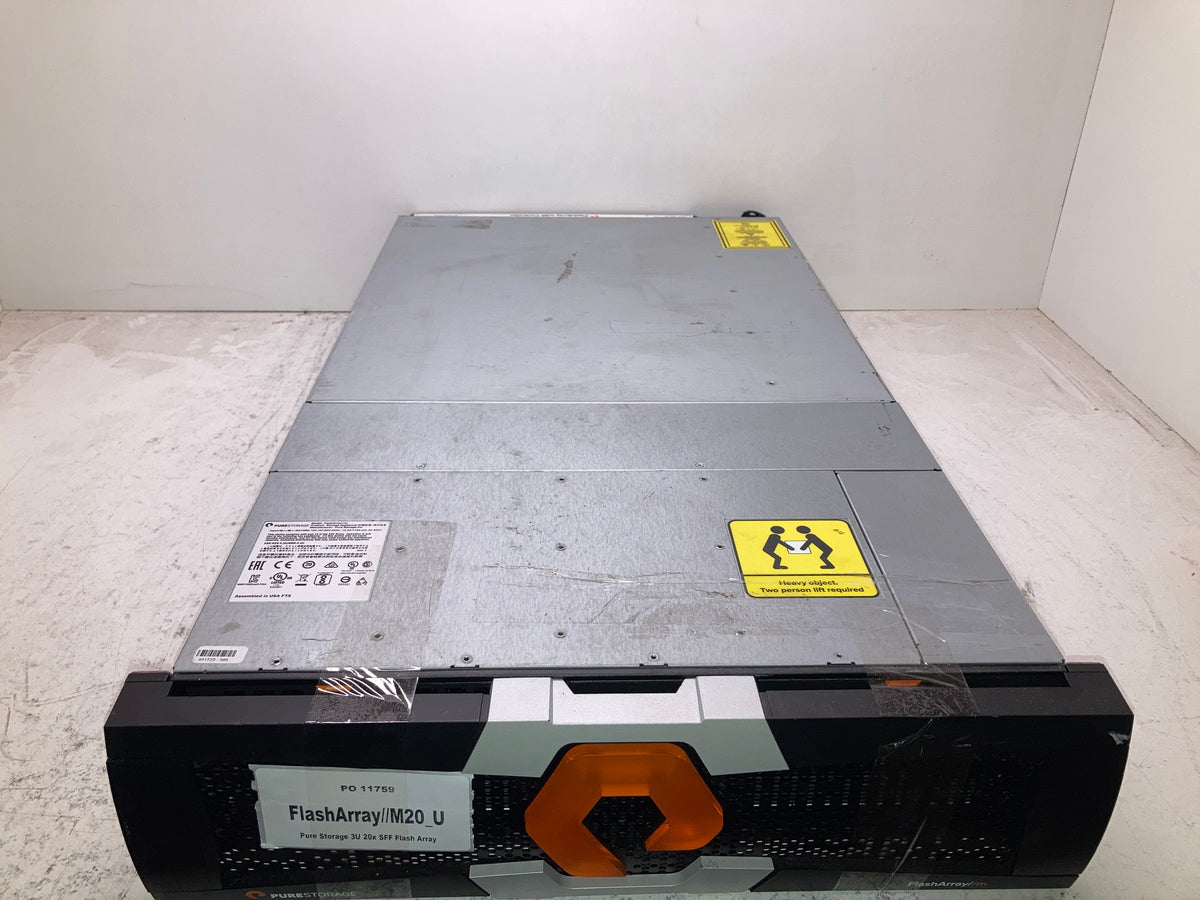

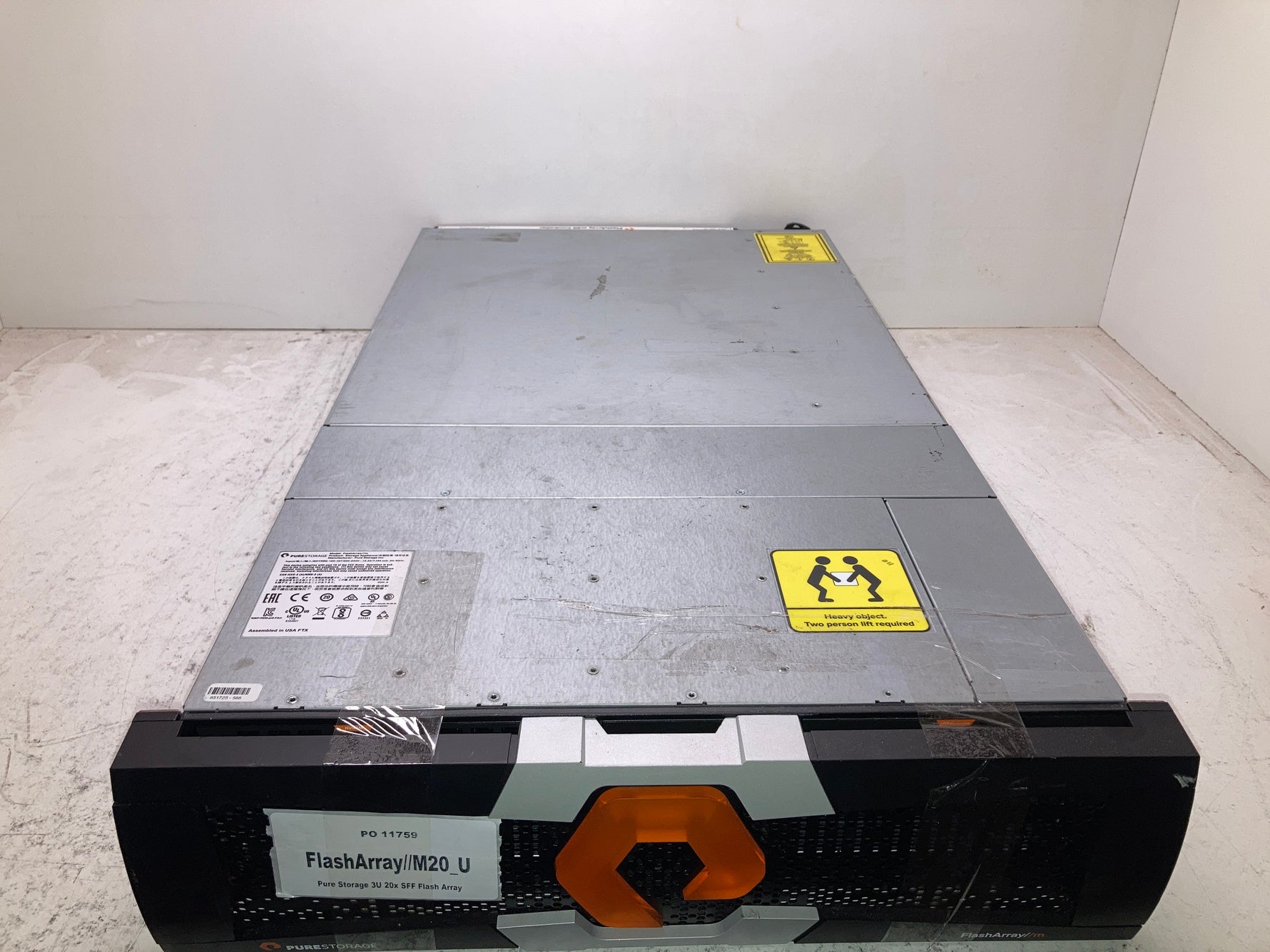

Pure Storage FlashArray//M20 (FA-M20) – 3U All-Flash Storage Array

The Pure Storage FlashArray//M20 (model FA-M20) is a compact 3U all-flash enterprise storage array designed for high performance, simplicity, and data reduction. It features a 20-bay 2.5-inch SFF drive chassis and delivers consistent low-latency performance with Purity Operating Environment software.

The //M20 is the entry-level model in the FlashArray//M series (launched around 2015). It uses a modular, stateless architecture with dual active-active controllers, NV-RAM for write protection, and DirectFlash modules (custom flash packs containing two SSDs each). With Purity software, it provides inline deduplication, compression, thin provisioning, and always-on encryption, achieving 5-10x effective capacity. It is ideal for consolidating databases, VDI, virtualization, and business-critical applications in a small footprint.

• 3U chassis with 20 x 2.5-inch SFF drive bays
• Dual active-active controllers (N+2 redundancy)
• Purity//FA operating system with always-on data reduction
• DirectFlash Modules (DFMs) – NVMe-ready flash (legacy 3D TLC/MLC)
• 10/25/40/100GbE iSCSI or Fibre Channel connectivity
• Evergreen//One subscription model (hardware refreshes included)
• Non-disruptive upgrades and zero-downtime maintenance
• Built-in snapshot, replication, and data protection features

Model / Part Number: Pure Storage FlashArray//M20 (FA-M20)
Interface / Connector Type: 10/25/40/100GbE iSCSI or 16/32Gb Fibre Channel
Capacity / Speed / Frequency: 20 x SFF bays / Up to 300,000+ IOPS / Sub-100 μs latency
Form Factor: 3U rack-mountable (20 x 2.5-inch bays)
Spindle Speed (RPM): N/A (All-flash array)
Sector Format / Firmware Info: Purity//FA OS (legacy 4.x–5.x) / Supports NVMe-ready DFMs
Power Requirements: Dual redundant PSUs / Typical 500–800W (configuration-dependent)
