Parts

C9130AXI-Z Cisco 802.11ac 9130AX Wireless Access Point 802.11. Cannot be added to a new Cisco smartnet agreement.

The Cisco 3745-IO-2FE (also referenced as Cisco Catalyst 3745 2-Port Fast Ethernet IO Controller) is an internal daughtercard / I/O controller that was factory-installed or field-replaceable on the Cisco 3745 Modular Access Router (part of the Cisco 3700 Series routers, launched early 2000s).

Product Description

This small card mounts directly onto the motherboard of the Cisco 3745 router and adds two additional Fast Ethernet (10/100 Mbps) RJ-45 ports (typically labeled FastEthernet0/2 and FastEthernet0/3 in IOS) beyond the two built-in Fast Ethernet ports on the base chassis (FastEthernet0/0 and FastEthernet0/1).

Key points:

• It is not a modular network module (NM), WAN interface card (WIC), or external card — it is an integrated I/O controller soldered or plugged internally.
• Adds basic Layer 2 Ethernet connectivity (10/100 Mbps, full/half-duplex, autosensing) for LAN segments, DMZ, separate VLANs, or connecting to downstream switches/routers.
• Fully integrated with the router's main forwarding engine — supports all standard Cisco IOS Layer 2/3 features on these ports (VLANs, QoS, ACLs, static routing, etc.).
• Commonly seen in Cisco 3745 configurations that needed more than two Fast Ethernet ports without consuming external WIC/NM slots.

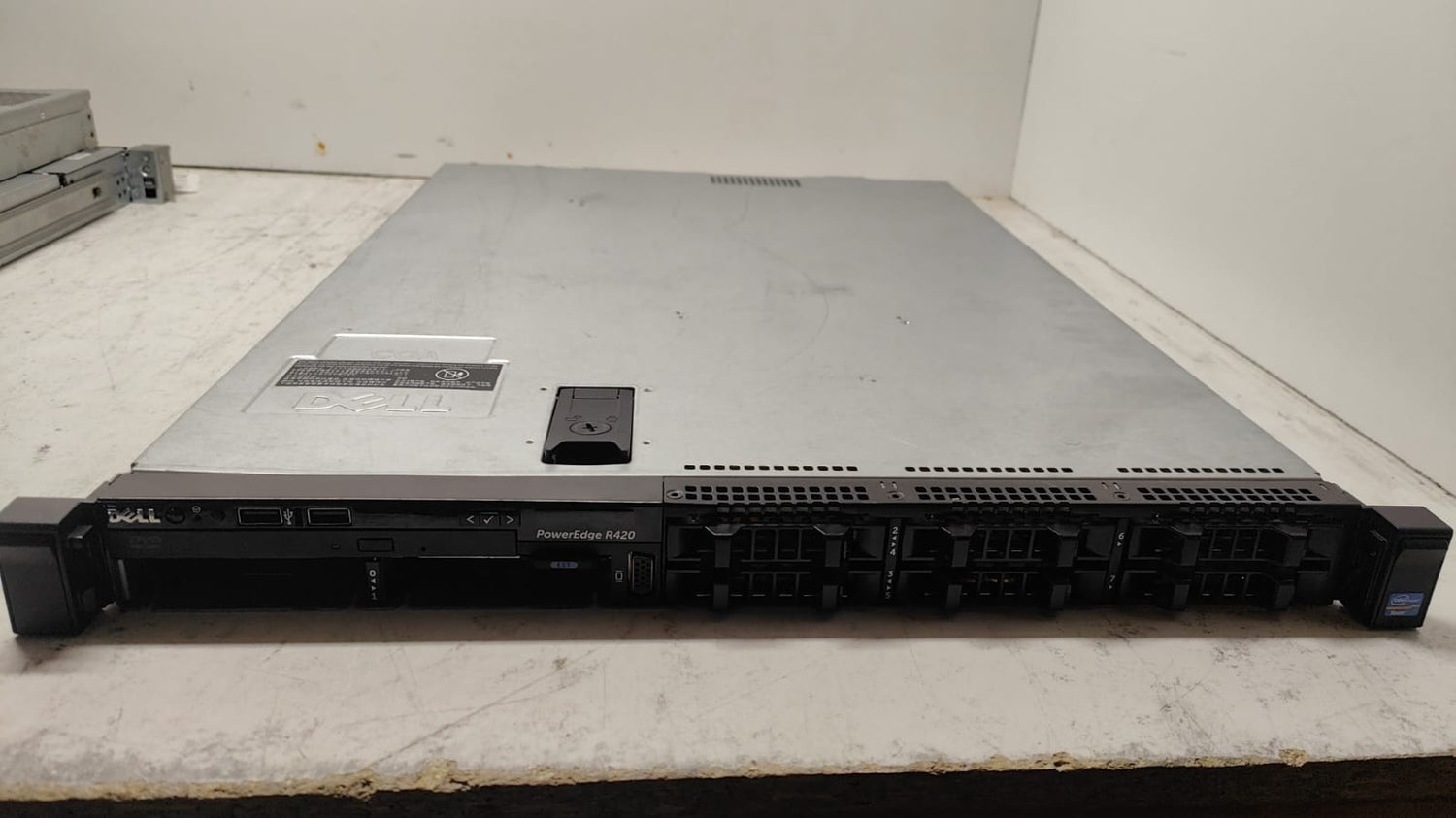

Dell PowerEdge R420 Server, Intel Xeon E5-2403 0, 8GB Ram

Dell PowerEdge R720 16x SFF disk bays Rackmount Server SN 9SNFD25 inc. 1x E5-2640 cpu, 64GB Ram

The Dell PowerEdge R720 (service tag/serial number 35K1621) with 16 × 2.5-inch SFF disk bays, 1 × Intel Xeon E5-2665 CPU, and 80 GB RAM is a 2U rack-mount enterprise server from Dell's 12th-generation PowerEdge family (launched 2012). This is a very common, highly configurable platform that was widely deployed for virtualization, databases, file serving, web/application hosting, backup targets, and general-purpose workloads throughout the 2010s and early 2020s.

The PowerEdge R720 is a dual-socket 2U rack server based on the Intel Xeon E5-2600 v1 (Sandy Bridge-EP) architecture. Your configuration includes:

• Chassis: 16 × 2.5-inch SFF (Small Form Factor) hot-swap drive bays (supports SAS/SATA HDDs/SSDs; optional 8 × 3.5" LFF config available but this unit is SFF)
• Processors: 1 × Intel Xeon E5-2665 (8 cores / 16 threads, 2.4 GHz base clock, 3.1 GHz turbo, 20 MB L3 cache, 115W TDP) → Single-CPU config (second CPU slot empty — can be upgraded to dual E5-2600 v1/v2 series)
• Memory: 80 GB DDR3 ECC Registered RDIMM (likely 10 × 8 GB or 5 × 16 GB DDR3-1333/1600 modules; maximum supported 768 GB with 24 DIMM slots)

This server offers excellent balance of compute, memory, storage, and I/O for its generation. The 16 SFF bays provide flexible storage options (e.g., high-IOPS SSDs for boot/OS/performance tier + high-capacity SAS/SATA for bulk data). The embedded PERC RAID controller (typically PERC H710 or H710P in this era) supports RAID 0/1/5/6/10/50/60 with optional battery-backed cache.

Networking and expansion are strong:

• 4 × 1 GbE embedded NICs (Broadcom or Intel-based)
• Up to 7 × PCIe 3.0 slots (depending on riser configuration)
• iDRAC7 (Integrated Dell Remote Access Controller 7) with dedicated management port for full out-of-band remote management (KVM, virtual media, power control, monitoring)

The R720 runs VMware ESXi, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux, Ubuntu, Oracle Linux, or older OSes — with full Dell validation for virtualization hypervisors and enterprise applications.

The Hitachi DF850-CBSLR (also referred to as DF850-CBSLR or part of the Hitachi Unified Storage 110 (HUS110) family) is a dual-controller LFF (Large Form Factor) storage enclosure — a 12-bay 3.5-inch disk array unit from Hitachi Data Systems (HDS, now Hitachi Vantara) Unified Storage platform, launched in the early 2010s.

The DF850-CBSLR is a controller-equipped base enclosure (Controller Box with Single-Controller or Dual-Controller LFF Rear configuration) that serves as the primary storage building block for Hitachi Unified Storage (HUS) 110 systems. It integrates dual RAID controllers (for high availability and failover), a 12 × 3.5-inch LFF SAS/SATA drive bay backplane, and all necessary I/O modules, power supplies, fans, and midplane for direct-attached or SAN-connected storage.

Key characteristics:

• Dual active/active controllers — each with embedded cache, SAS ports, and FC/iSCSI host interfaces (depending on configuration)
• 12 × 3.5-inch LFF hot-swap drive bays — supports SAS HDDs (7.2K/10K/15K) and SATA HDDs for capacity-optimized storage
• SAS-2 (6 Gbps) back-end connectivity (via internal SAS expanders)
• Modular expansion — can connect to additional DF850-DBS/DBL drive boxes (expansion shelves) for scaling capacity up to dozens of drives
• RAID support — RAID 0/1/5/6/10/50/60 via Hitachi Storage Navigator Modular 2 (SNM2) management software
• Host interfaces — typically 8/16 Gb Fibre Channel, 1/10 Gb iSCSI, or FCoE (via optional I/O modules)
• Redundant hot-swap components — dual PSUs, dual controllers, redundant fans/cooling
• Front-to-back airflow — standard for data center racks

This enclosure was commonly used in:

• Midrange SAN/NAS storage for block/file workloads
• Backup targets, archival, secondary storage, or VTL (Virtual Tape Library)
• Small-to-medium enterprise environments before migration to newer Hitachi VSP or HPE/Nimble/NetApp platforms

NAJ-1001 NetApp DS2246 24-Drive Storage Array 2x IOM6 Controllers 2x Power Supply No HD

The Juniper EX4200-48PX is a high-performance, stackable Layer 3 Gigabit Ethernet switch with 48 x 10/100/1000BASE-T PoE+ ports and 4 x 10GbE SFP+ uplink ports. It belongs to Juniper’s popular EX4200 series and is designed for access and aggregation layers in enterprise campus and data center environments where Power over Ethernet (PoE+) and high availability are required.

This switch delivers full wire-speed performance on all 48 Gigabit ports with PoE+ (IEEE 802.3at) support up to 30W per port. It features Juniper’s Virtual Chassis technology, allowing up to 10 EX4200 switches to be stacked as a single logical device. The EX4200-48PX runs Junos OS, providing advanced Layer 2 and Layer 3 features including routing protocols (OSPF, BGP, IS-IS), QoS, security (802.1X, firewall filters), and comprehensive management capabilities.

The Juniper EX4200-24T is a compact, managed Layer 2/Layer 3 Gigabit Ethernet switch from the EX4200 series. It features 24 x 1GbE RJ-45 ports (with 8 ports supporting PoE), and 2 x 10GbE XFP uplink ports, making it ideal for access layer deployments requiring Power over Ethernet and high-speed uplinks.

This switch delivers wire-speed performance with advanced Junos OS features, including Virtual Chassis technology that allows up to 10 EX4200 switches to operate as a single logical device. It is widely used in enterprise campus, branch offices, and data center top-of-rack environments where PoE is needed for IP phones, access points, or cameras, along with 10GbE uplinks for backbone connectivity.

NETGEAR PROSAFE GS748T-500AJS GS748T 48 x 10/100/1000 Ethernet, 4 x 10000 Fiber

HP 603588-B21 PROLIANT BL460C G7 2X E5620 2.4GHz 6gb ram

The HP BL490c G6 is a half-height blade server for the HP BladeSystem c3000 and c7000 enclosures. It belongs to the 6th generation (G6) ProLiant blade family and offers a good balance of performance, memory capacity, and storage for its compact form factor. This particular configuration comes with one Intel Xeon X5650 processor and 12GB DDR3 RAM.

The BL490c G6 is a versatile, high-density blade server designed for virtualization, database, web hosting, and general enterprise workloads. It supports up to two Intel Xeon 5600-series processors, up to 192GB of DDR3 memory, and two hot-plug small form factor (SFF) SAS/SATA hard drives. It provides excellent expandability with two mezzanine slots for additional networking or Fibre Channel connectivity.

The HP 603569-B21 is a pre-configured HP ProLiant BL460c G7 server blade — a half-height, dual-socket blade server from the HP BladeSystem c-Class generation (launched 2010–2011), based on the Intel Xeon 5600 series (Westmere-EP) processors.

This specific configuration includes:

• Processors: 1 × Intel Xeon E5640 (4 cores / 8 threads, 2.66 GHz base clock, 2.93 GHz turbo, 12 MB L3 cache, 80W TDP) → Note: The blade supports dual CPUs; this is a single-CPU config (second CPU can be added)
• Memory: 48 GB DDR3 ECC Registered RDIMM (typically configured as 12 × 4 GB or 6 × 8 GB DDR3-1333 modules)

Product Description

The ProLiant BL460c G7 is a high-density, virtualization-optimized blade server designed for enterprise data centers running VMware vSphere/ESXi, Microsoft Hyper-V, Citrix XenServer, or bare-metal workloads such as databases, ERP/CRM, web/application serving, file/print services, and test/dev environments.

Key features of the BL460c G7 platform:

• Dual-socket Intel Xeon 5600-series support (up to 12 cores/24 threads per blade with turbo boost when dual CPUs installed)
• Up to 18 DIMM slots (9 per CPU) for maximum 384 GB DDR3 ECC memory
• Internal storage: Up to 2 × 2.5" SAS/SATA hot-plug SFF drives with embedded HP Smart Array P410i RAID controller (0/1/1+0/5/5+0/10/50 with optional cache)
• Networking: 2 × 1 GbE embedded NICs (Broadcom BCM5718 or Intel-based) + up to 2 mezzanine cards (e.g., 10GbE, Fibre Channel, InfiniBand)
• Management: Integrated iLO 3 (Integrated Lights-Out 3) with dedicated management port for remote KVM, virtual media, power control, and monitoring
• Form Factor: Half-height blade — fits HP BladeSystem c3000 (8 slots) or c7000 (16 slots) enclosures

A single c7000 enclosure can host up to 16 BL460c G7 blades, providing high core/memory density in a compact 10U footprint.

HP 637391-B21 PROLIANT BL460c G7 2x E5649 2.5GHz 36GB RAM
