Storage Area Network (SAN) Solutions

00L4595 IBM Storwize V3700 2U 12LFF

1746A2D IBM New SAN DS3512 1746A2D Express Storage System 3.5inch 3.5 Disks Dual Controller

1746A4D IBM New SAN SNOWMASS 1746A4D

IBM 1750-511 DS6800 Expansion Enclosure with Controller

2072LEU IBM New V3700 SAN 3.5inch DISK STORAGE EXPANSION ARRAY 2072LEU 2072-LEU 2072-12E (IBM Gen1 Chassis 00L4595)

CS240 Nimble Storage 3RU Multi-Node Server W/ 2 X Intel Xeon (E5504) 2GHz 4-Core CPU 12GB DDR3 Nodes 2nd :: alt () other //

EMC DATA DOMAIN DD620 12*LFF STORAGE ARRAY

Hitachi VSP G350 SAN Storage System 24-Bay 2RU Virtual Storage Platform NO CONTROLLER

Nimble Storage ES2-H21T 4U Rackmount Hybrid Storage Expansion Enclosure 2x Controller 2x PSU MISSING POWER BUTTON BEZZEL

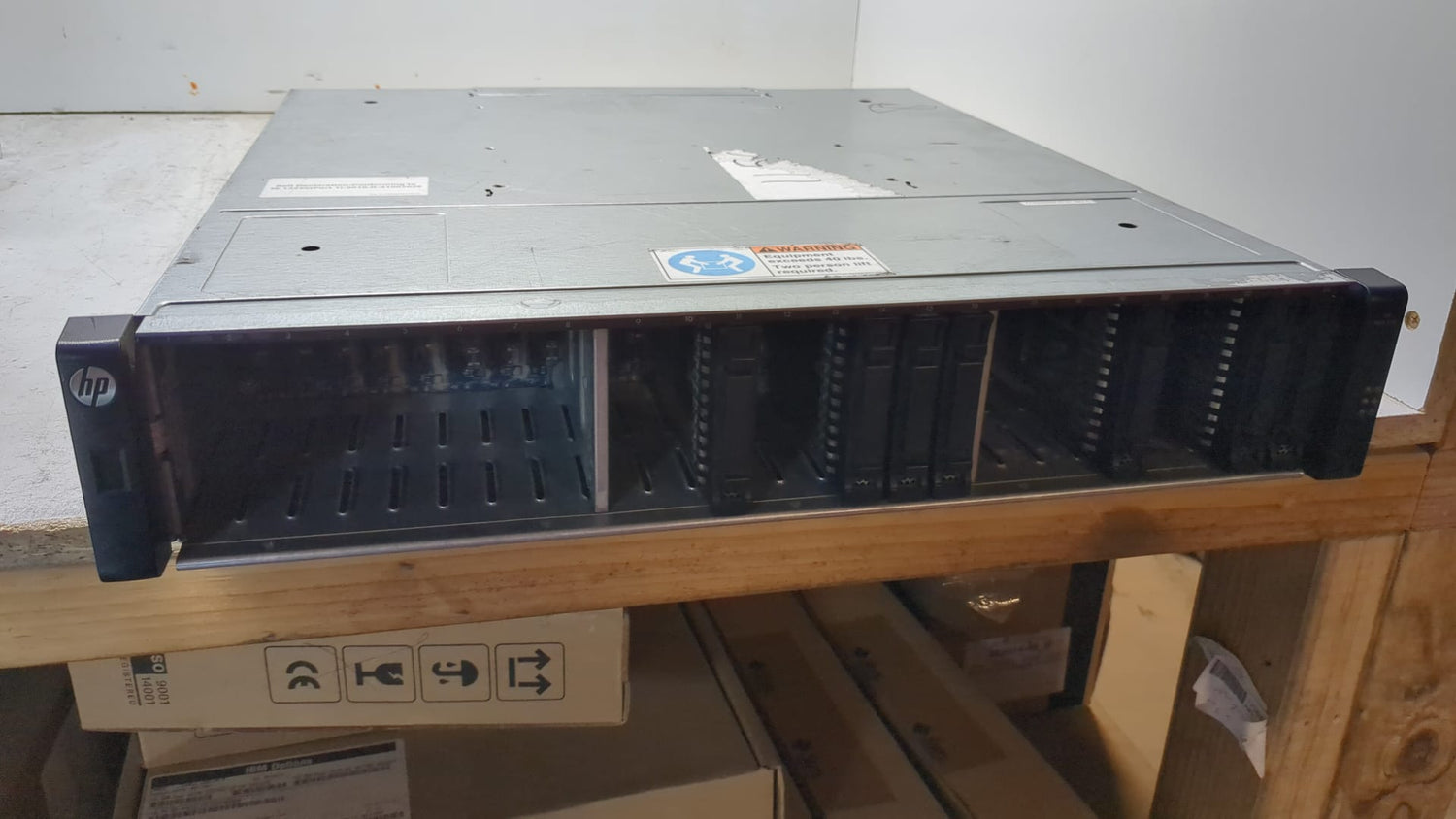

HPE K2Q89A MSA 1040 2-PORT SAS SAN 2nd :: Alt () Other //

Netapp PL2-25068-30B 5350 0863 SAS 2.5" 12x SFF Storage Array Backplane 2nd :: Alt (P41005-05-A) Other //

HP Nimble Storage Array expansion array for HF/AF 2nd :: Alt () Other /NMBLA-0002-1200E/

New CX-4PDAE Dell EMC Model- KTN-STL4 Storage Array 15 BAY Fibre Channel Enclosure 15 x Seagate Cheetah ST3450856FCV 450GB 15.6K RPM 4Gb/s Fibre Channel Hard Drive 2 x 071-000-438 Power Supply 2 x 100

EMC 110-385-202B-03 Isilon Hybrid H500 Storage System

Nimble AF1000 4U, 48-Bay All Flash Storage Chassis - No Drives

The Hitachi DF850-CBSLR (also referred to as DF850-CBSLR or part of the Hitachi Unified Storage 110 (HUS110) family) is a dual-controller LFF (Large Form Factor) storage enclosure — a 12-bay 3.5-inch disk array unit from Hitachi Data Systems (HDS, now Hitachi Vantara) Unified Storage platform, launched in the early 2010s.

The DF850-CBSLR is a controller-equipped base enclosure (Controller Box with Single-Controller or Dual-Controller LFF Rear configuration) that serves as the primary storage building block for Hitachi Unified Storage (HUS) 110 systems. It integrates dual RAID controllers (for high availability and failover), a 12 × 3.5-inch LFF SAS/SATA drive bay backplane, and all necessary I/O modules, power supplies, fans, and midplane for direct-attached or SAN-connected storage.

Key characteristics:

• Dual active/active controllers — each with embedded cache, SAS ports, and FC/iSCSI host interfaces (depending on configuration)
• 12 × 3.5-inch LFF hot-swap drive bays — supports SAS HDDs (7.2K/10K/15K) and SATA HDDs for capacity-optimized storage
• SAS-2 (6 Gbps) back-end connectivity (via internal SAS expanders)
• Modular expansion — can connect to additional DF850-DBS/DBL drive boxes (expansion shelves) for scaling capacity up to dozens of drives
• RAID support — RAID 0/1/5/6/10/50/60 via Hitachi Storage Navigator Modular 2 (SNM2) management software
• Host interfaces — typically 8/16 Gb Fibre Channel, 1/10 Gb iSCSI, or FCoE (via optional I/O modules)
• Redundant hot-swap components — dual PSUs, dual controllers, redundant fans/cooling
• Front-to-back airflow — standard for data center racks

This enclosure was commonly used in:

• Midrange SAN/NAS storage for block/file workloads
• Backup targets, archival, secondary storage, or VTL (Virtual Tape Library)
• Small-to-medium enterprise environments before migration to newer Hitachi VSP or HPE/Nimble/NetApp platforms

NAJ-1001 NetApp DS2246 24-Drive Storage Array 2x IOM6 Controllers 2x Power Supply No HD
