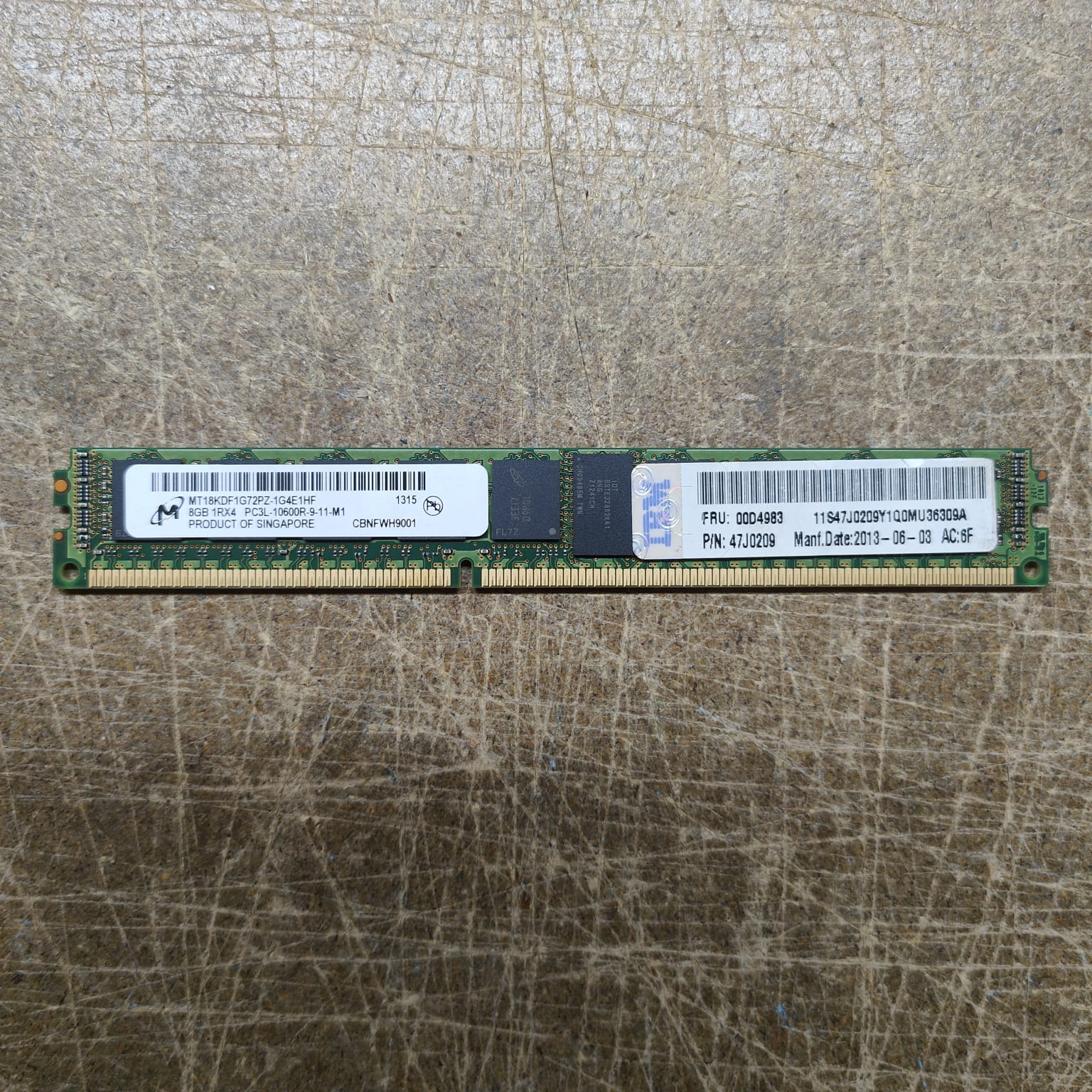

IBM 00D4983 8G (1 X 8GB) 1RX4-PC3L-10600R VLP MEMORY

$151.30 (Ex. GST)

In stock: 32

IBM 00D4983 8G (1 X 8GB) 1RX4-PC3L-10600R VLP MEMORY

Model / Primary Part Number: IBM 00D4983

Alternate / Cross-Reference Part Number: 47J0209

Memory Type: DDR3 ECC Registered DIMM (RDIMM), Very Low Profile (VLP)

Capacity per Module: 8 GB

Speed / Bus: DDR3-1333 (PC3L-10600R)

Rank & Organization: 1Rx4 (single-rank, x4 DRAM chips)

Voltage: 1.35 V (low-voltage DDR3L – backward compatible with 1.5 V systems)

CAS Latency: CL9 (typical for 1333 MHz RDIMMs)

ECC: Yes (full single-bit correction, multi-bit detection)

Form Factor: 240-pin DDR3 RDIMM, Very Low Profile (VLP ≈ 18.75 mm height)

Primary Platforms: IBM Power Systems (POWER7 / POWER7+ blades and 1U/2U servers), some IBM System x DDR3 servers

Status (2025–2026): Legacy / End-of-Life – DDR3 is obsolete; no new production or active IBM/Lenovo support

Total Capacity: 8 GB per module

Memory Type: DDR3 SDRAM ECC Registered (RDIMM)

Data Rate: 1333 MT/s (PC3L-10600R)

Rank Configuration: 1Rx4

Voltage: 1.35 V (low-voltage DDR3L)

CAS Latency (CL): 9

Timing (typical): 9-9-9-24 or similar

Error Correction: ECC (single-bit correct, multi-bit detect)

Pin Count: 240-pin

Module Height: Very Low Profile (VLP) ≈ 18.75 mm (0.738 inches)

Operating Temperature: 0°C to 85°C (compliant with server operating range)

Compatibility: IBM Power Systems (e.g., BladeCenter HS22/HS23, Power 710/720/730/740, Power 770/780), some IBM System x DDR3 servers

Optimal Usage: Installed in matched pairs/quads per memory channel for maximum bandwidth
