Parts

Eaton 9103-83800 3000VA 2700W 120V 9PX Universal Power Supply

Eaton 9104-12609-00P UPS 2nd :: Alt () Other //

IBM Power 9 IC922 9183-22X Power9 Server, 2x IBM Power9 12 Core 02CY584 (Similar to IBM S922 Power9 Server)

IBM 95P8257 LTO 5 ULTRIUM 5-H INTERNAL TAPE DRIVE

HP P2000 3.5inch Drive Enclosure SAS IO Module 592262-002 AP844B

EATON APR48-3G 240V 12A 50/60HZ RECTIFIER

EATON APR48-ES RECTIFIER 2000W OUTPUT W 208/240VAC INPUT

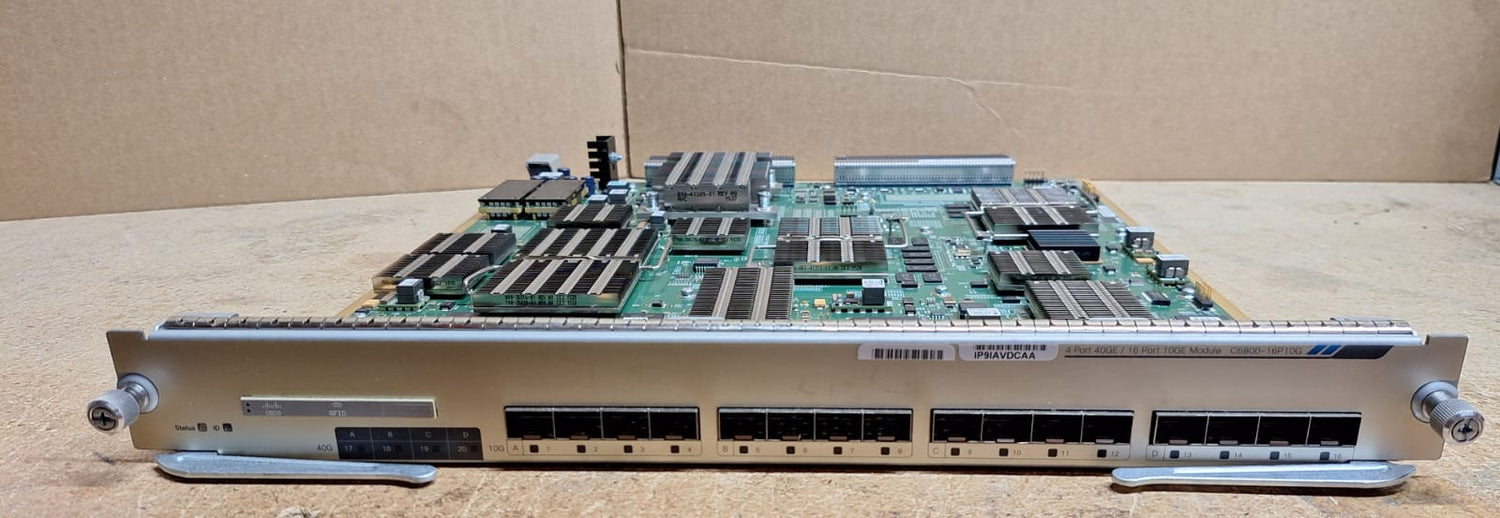

The Cisco C6800-16P10G (also known as C6800-16P10G V01) is a high-performance 40 Gigabit Ethernet line card for the Cisco Catalyst 6800 Series chassis-based switches (C6807-XL and C6816-XL Supervisor Engine 6T/2T).

This is a single-slot line card that provides:

• 16 × 10 Gigabit Ethernet SFP+ ports
• 4 × 40 Gigabit Ethernet QSFP+ ports

It is designed for high-density 10G/40G aggregation, data center access/aggregation, campus core/distribution, or service provider edge deployments where massive bandwidth and low latency are required.

The module is based on the CEF720 architecture with distributed forwarding (dCEF), delivering non-blocking, line-rate performance across all ports when used with a compatible Supervisor Engine (Sup6T or Sup2T). It supports full Layer 2/3/4 switching and routing, advanced QoS, security ACLs, Flexible NetFlow, MPLS, VRF-Lite, and large-scale multicast.

Key advantages:

• High port density in a single slot (16×10G + 4×40G)
• QSFP+ ports can be used as native 40G or broken out to 4×10G using QSFP-to-SFP+ breakout cables
• Excellent for 10G server aggregation with 40G uplinks to core
• Full hardware-based forwarding with large forwarding tables

This line card was a popular upgrade for Catalyst 6800 chassis that needed to scale beyond the older 10G line cards (e.g., WS-X6716-10G) while maintaining investment in the 6800 platform.

Cisco Catalyst C9400-LC-48U 9400 48-Port UPOE 10/100/1000 (RJ-45) Switch

DELL CG2YM H330 SAS 12GB PCIE

The Cisco CISCO2921/K9 is a 3-port Gigabit Integrated Services Router from the Cisco 2900 Series (launched 2010–2011) — a 1RU rack-mountable, modular branch-office router designed for medium-sized businesses, branch offices, and distributed enterprise sites requiring advanced routing, security, voice, wireless LAN controller functionality, and WAN optimization in a compact form factor.

Product Description

The Cisco 2921 is a high-performance, modular ISR (Integrated Services Router) that combines routing, security, voice, and application services into a single platform. It features:

• 3 onboard Gigabit Ethernet RJ-45 ports (GigabitEthernet0/0, 0/1, 0/2) — configurable as LAN or WAN interfaces
• 3 Enhanced High-Speed WAN Interface Card (EHWIC) slots for expansion (e.g., T1/E1, serial, ISDN, LTE, additional Ethernet, voice modules)
• 1 double-wide EHWIC slot (can be used for larger modules like SM-1T3/E3)
• 1 Internal Service Module (ISM) slot for optional security/acceleration cards (e.g., IPSec VPN, WAAS)
• 1 Packet Voice Data Module (PVDM3) slot for voice DSPs (supports up to 100 voice channels with PVDM3-100)
• Dual redundant power supply bays (default single PSU; optional second for redundancy)
• Redundant hot-swap fans (front-to-back airflow)

It runs Cisco IOS (or IOS-XE in later images) with full modular software licensing:

• IP Base (default) — basic routing, security, QoS
• Upgradable to Security, UC (Unified Communications), AppX (Application Experience), or full UC license bundles

Common deployment scenarios:

• Branch-office WAN router with MPLS/Internet breakout
• DMVPN hub/spoke or GETVPN
• Voice gateway (SRST, CME, CUBE)
• SD-WAN edge (with Viptela/IWAN)
• Small wireless LAN controller (up to 50 APs with UC license)

CR1225 3V Lithium Button Battery

Nimble Storage CS400 San Controller w/Super X8DTS-F Xeon E5645 2.40GHz 24GB RAM
