ORACLE 7078248 T5-4 REAR I/O ASSEMBLY

$486.20 (Ex. GST)

In stock: 1

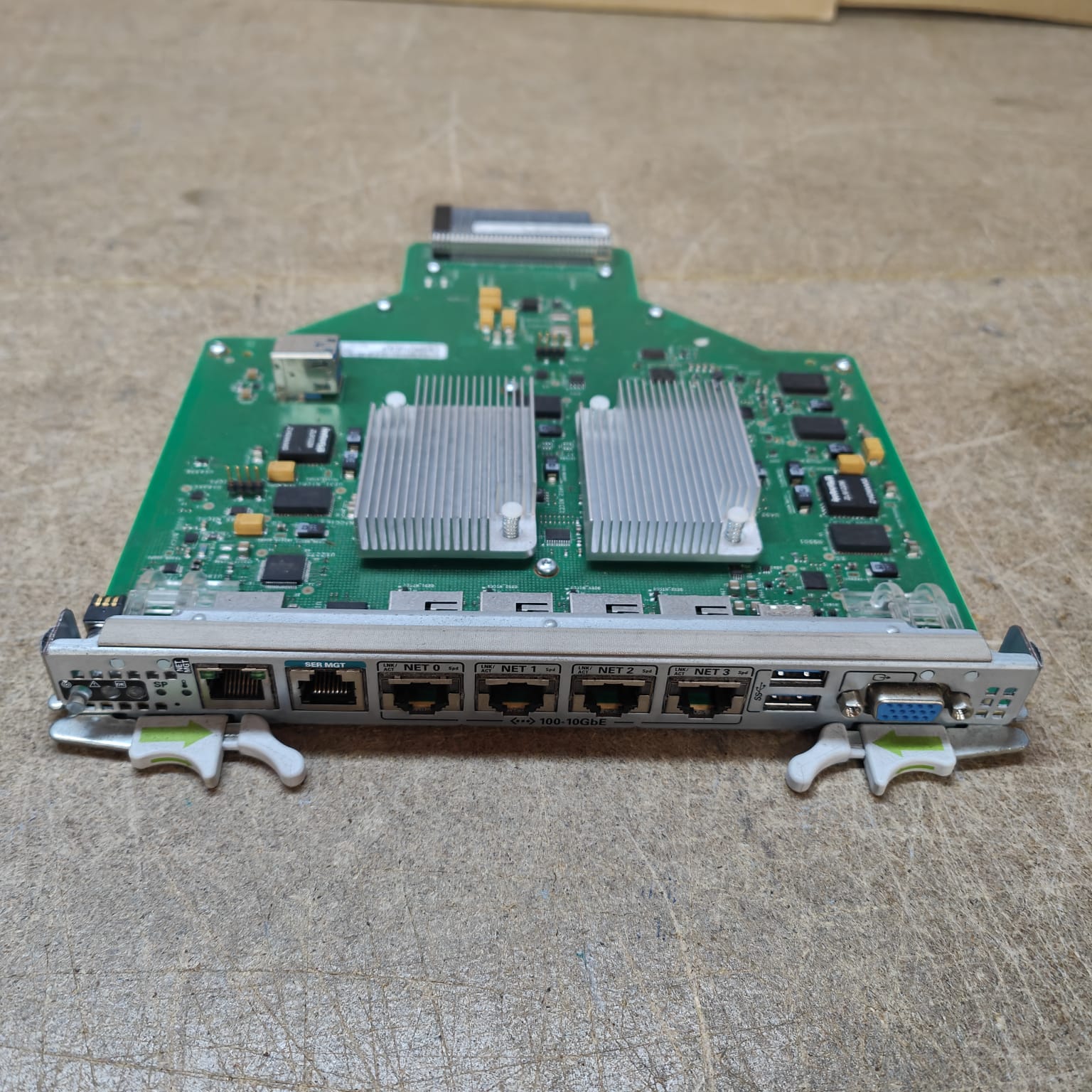

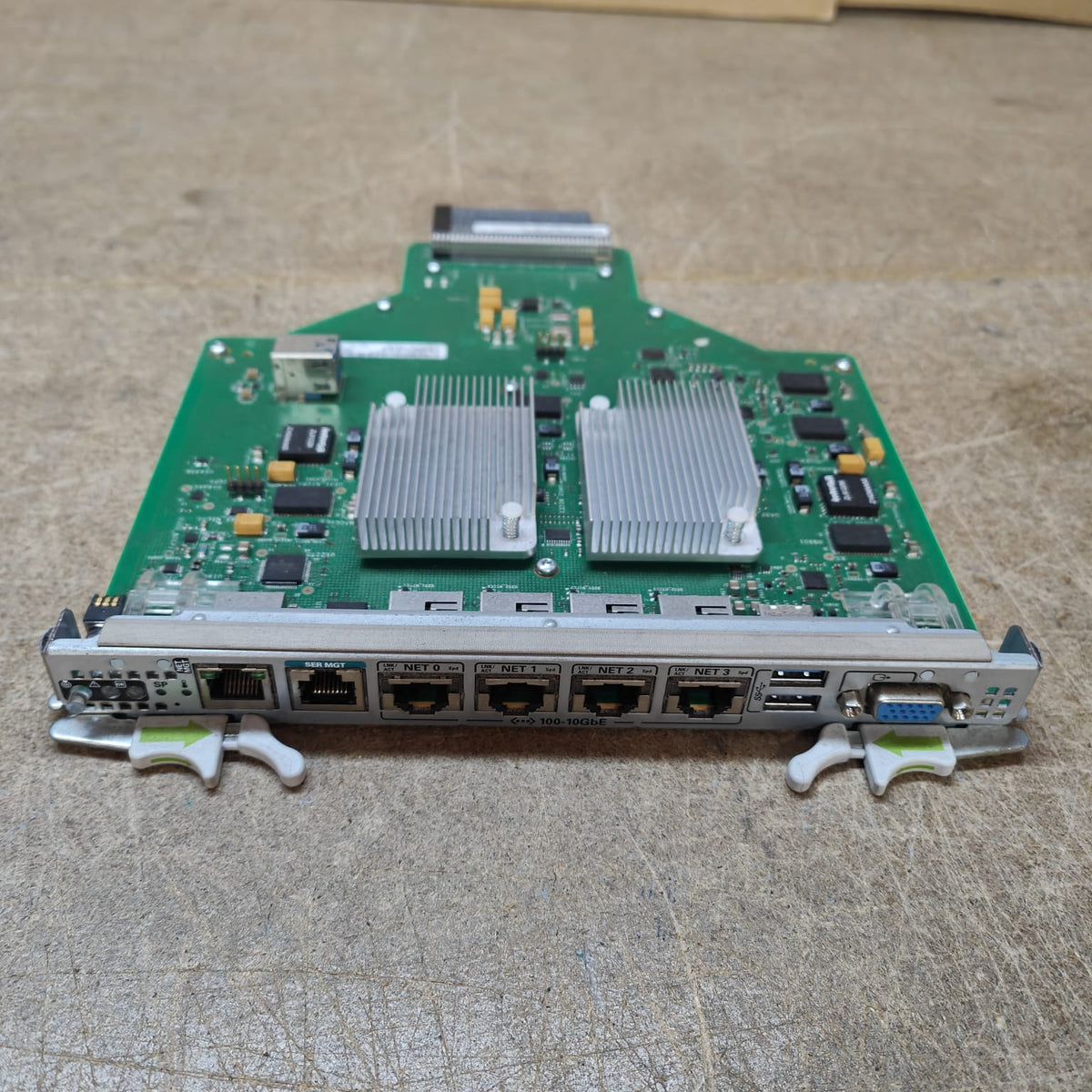

The Oracle 7078248 is the Rear I/O Board / Rear I/O Assembly for the Oracle SPARC T5-4 server (and compatible with some T5-8 configurations).

Product Description

This is the main rear I/O plane located at the back of the SPARC T5-4 chassis. It serves as the central hub for all external I/O connectivity, routing PCIe lanes from the SPARC T5 processors to the rear panel and providing physical connectors for:

  • PCIe expansion slots (via risers)
  • Onboard networking ports (typically 10GbE)
  • Management / Service Processor (ILOM) ports
  • USB ports
  • Serial/console ports

The board connects to the motherboard via high-speed cables or direct midplane connectors and handles signal distribution for the entire rear subassembly. It is a critical component — damage or failure usually results in lost rear PCIe slots, missing network ports, or I/O-related boot errors.


• Rear I/O board with multiple PCIe slots for NICs/HBAs
• Onboard 10GbE ports (dual-port in base config)
• Serial console port (RJ-45)
• USB ports for local management/keyboard
• ILOM management port (RJ-45)
• Status LEDs for power, fault, and network activity
• Robust carrier design for easy hot-swap/service

Model / Part Number: Oracle 7078248 (Rear I/O Assembly for SPARC T5-4)
Interface / Connector Type: Rear I/O backplane with PCIe slots, 10GbE RJ-45/SFP+, serial, USB, ILOM port
Capacity / Speed / Frequency: Supports up to 10GbE/40GbE via PCIe cards / Adapter-dependent
Form Factor: Rear I/O carrier board for SPARC T5-4 chassis
Spindle Speed (RPM): N/A (I/O assembly)
Sector Format / Firmware Info: N/A (Hardware assembly)
Power Requirements: Chassis-supplied / Typical low power draw (adapter-dependent)
