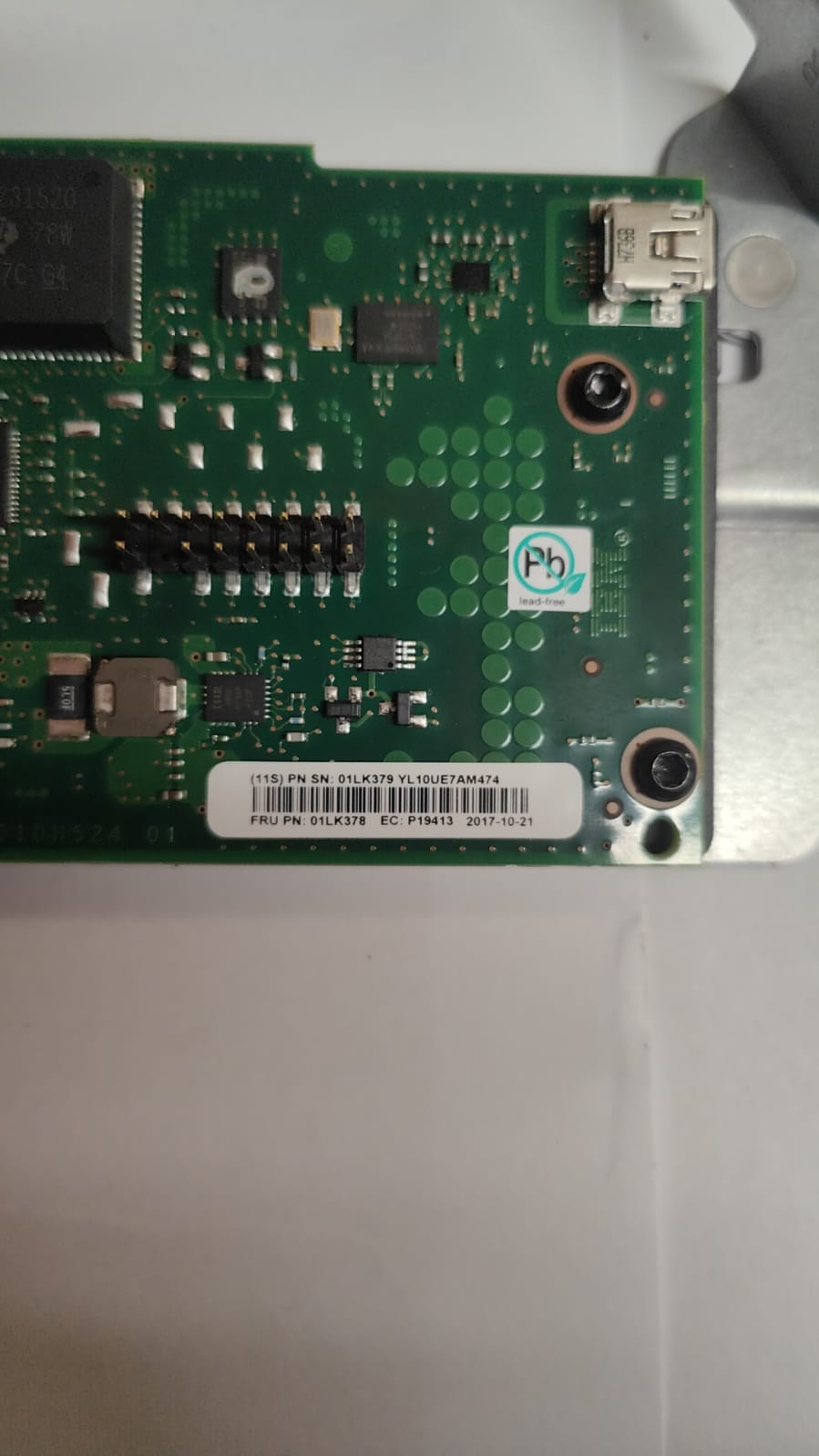

IBM 01LK378 6Gb PCIe3 x8 SAS Controller 2U

$168.76 (Ex. GST)

In stock: 2

IBM 01LK378 6Gb PCIe3 x8 SAS Controller 2U

PCIe 3.0 x8 host interface (backward compatible with PCIe 2.0/1.1)

6 Gbps SAS 2.0 (12 lanes total, often 8 internal ports)

Onboard write cache (1.8 GB in most configs; battery-backed or flash-backed in variants)

Supports RAID 0, 1, 5, 6, 10, 50, 60

Internal SAS connectors (Mini-SAS HD or SFF-8643 style)

Hot-plug drive support (when connected to backplane)

Advanced error correction and data protection

Model / Part Number: IBM 01LK378 (FC 57D7 / CCIN 57D7)
Interface / Connector Type: PCIe 3.0 x8 host / Internal SAS (Mini-SAS HD / SFF-8643)
Capacity / Speed / Frequency: 6 Gbps SAS 2.0 / Onboard cache (1.8 GB typical)
Form Factor: PCIe low-profile/full-height card (2U server compatible)
Spindle Speed (RPM): N/A (SAS RAID controller)
Sector Format / Firmware Info: N/A (Hardware adapter)
Power Requirements: Slot-supplied / Typical ~15–30W (configuration-dependent)
