EMC 071-000-600-04 DS60 1600W POWER SUPPLY

$190.40 (Ex. GST)

In stock: 5

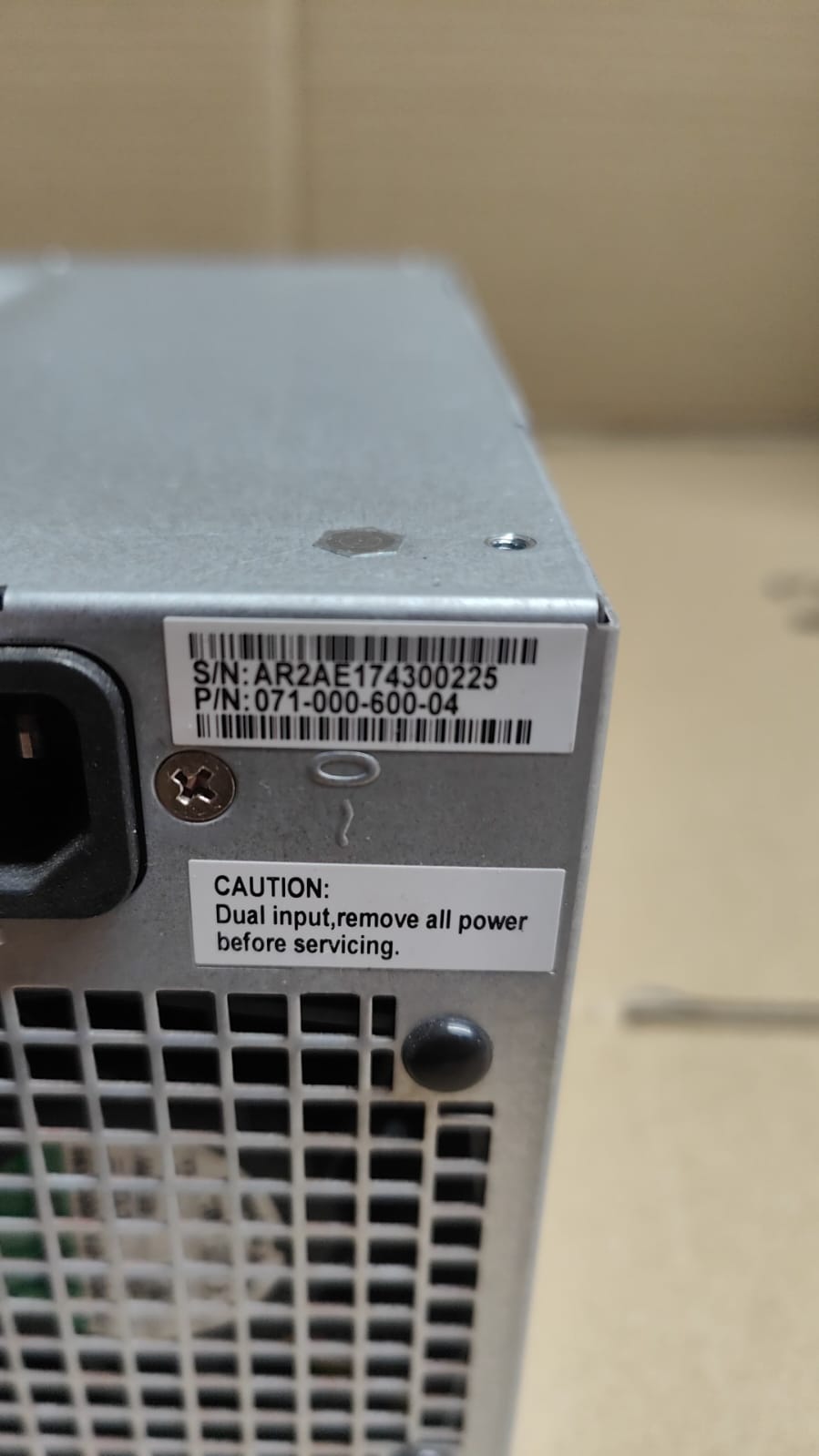

EMC 071-000-600-04 DS60 1600W POWER SUPPLY

Model / Part Number: EMC 071-000-600-04

Associated System: EMC Clariion CX600 (and related CX4-series enclosures)

Output Power: 1600W continuous

Input Voltage: Universal AC 100–240V, 50/60 Hz (auto-ranging)

Efficiency: High-efficiency design (typically 85–90% range)

Cooling: Integrated fan with front-to-back airflow (matches CX enclosure direction)

Hot-Swap: Yes — can be replaced without powering down the enclosure (in redundant setups)

Status Indicators: LED lights (AC OK, DC OK, Fault)

Redundancy: Supports 1+1 or N+1 configurations (CX600 typically has 2 PSU slots)

Primary Use: Powering Clariion CX600 storage arrays and expansion DAEs

Status (2025–2026): Legacy / End-of-Life — Clariion CX-series reached EoL/EoS over a decade ago; no new production or active Dell EMC support

Output Power: 1600W maximum continuous

Input Voltage Range: 100–240V AC (auto-ranging)

Input Frequency: 50/60 Hz

Input Current: Up to ~16A at 100V / ~8A at 240V (typical full load)

Output Voltages: Multiple regulated rails (primarily 12V main, with auxiliary 5V/3.3V for control electronics)

Efficiency: Approximately 85–90%

Power Factor Correction: Active PFC (≥0.95 typical)

Cooling: Integrated fan (front-to-back airflow)

Hot-Swap: Yes (in redundant PSU configurations)

Form Factor: Rear-mounted, hot-plug module for CX600 enclosure

Status Monitoring: LED indicators + system-reported faults via Navisphere/Unisphere

Operating Temperature: 10°C to 35°C (50°F to 95°F) – aligned with CX enclosure specs

MTBF: High (carrier-grade rating for Clariion series)
